Teraflex Tera60 HD Front Axle with Locking Hub, ARB Locker and 5.38 Gears for 4 to 6-Inch Lift (07-18 Jeep Wrangler JK)Find parts that fit my vehicle

Item J117669
Product Image

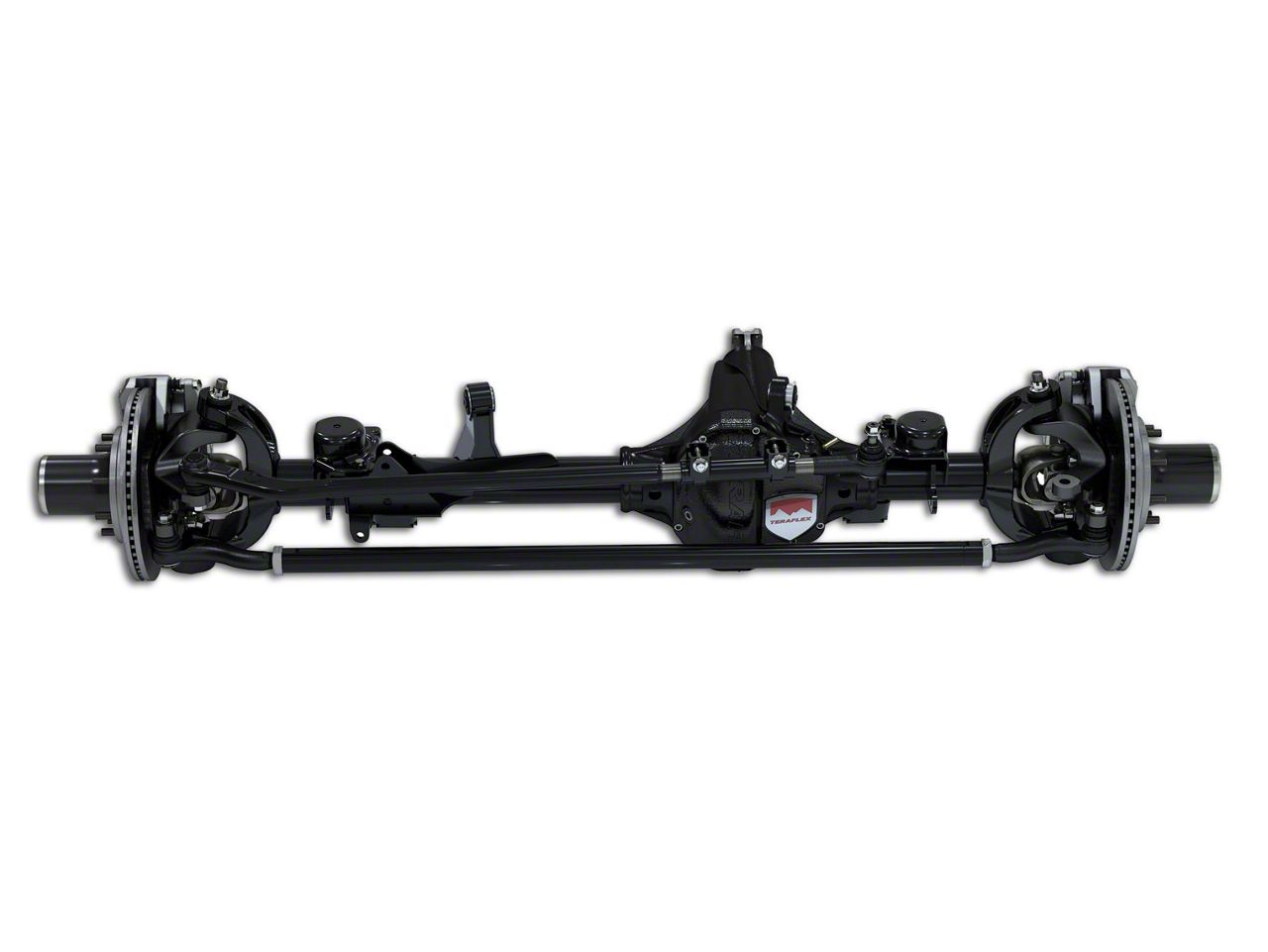

Teraflex Tera60 HD Front Axle with Locking Hub, ARB Locker and 5.38 Gears for 4 to 6-Inch Lift (07-18 Jeep Wrangler JK)
Verify parts fit and get product recommendations.
Wrangler Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-870-8556 Chat Now
$0.00
2 Reviews
Our Price

$10,943.99 each

Out of Stock $199.00 Oversized Item Fee

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Front Tera60 Axle With Locking Hubs & 5.38 Gears
      • 5.38 Spicer Ring And Pinion
      • 8 x 6.50 Inch Wheel Bolt Pattern
      • Works With 0-6 Inch Lift
      • Ductile Cast Iron Housing With Increased Rib Gussets
      • Heavy-Duty Housing and Tubes
      • Pre-Installed Axle Seals
      • Full-Float Type Housing
      • Pre-Drilled Holes For Limit Straps & Lower Spring Retainers
      • Oversized Front Pinion
      • 3.25 Inch O.D. x 0.375 Inch Wall Axle Tube For Superior Strength
      • 5.38 Spicer Ring And Pinion
      • ARB Super Air Locker
      • Smooth Profile Surfaces For Gliding Over Obstacles
      • Big Brake Kit With 13.30 Inch Rotors
      • Premium UV Protected Coating
      • Superior Corrosion Resistance
      • Direct Bolt-On
      • Engineered, Designed And Built In The USA
      • Moderately Difficult Installation
      • 1-Year Unlimited Mileage Warranty
      • Lifetime Structural Warranty
      • Fits 2007-2018 Jeep Wrangler JK

      Description

      A Heavy Duty Full Floating Dana 60 Front Axle for Your Jeep. The Teraflex Front Tera60 Axle with Locking Hubs & 5.38 Gears is the toughest replacement front axle for your JK Jeep. This 8 x 6.50 inch wheel bolt pattern front axle is ideal for extreme off-road Jeeps with up to 6 inches of lift.

      Durable Cast Iron Construction. This heavy-duty Tera60 axle housing is created from ductile cast iron with increased rib gussets for added strength. Equipped with pre-installed inner seals and high flow oil passages, this housing is built to outlive and outperform your stock unit.

      Built To Last. This full float axle housing also comes pre-tapped for bump stop extension and pre-drilled for limit straps and lower spring retainers. For added strength, the axle sports an oversized front pinon. This serious off-road upgrade built with 3.25-inch O.D. x 0.37-inch thick wall axle tubes for superior strength and longevity.

      Traction And Off Road Features. Giving traction to the 5.38 Spicer ring and pinion geared front is a ARB super air locker. The front axle is built with the exclusive smooth radius bottom design allowing it to glide over obstacles. Stopping your Jeep is a 13.3-inch rotor provided with this axle.

      Protecting The Axle. The axle is covered in a premium UV protected triple-stage powder coat to keep it protected from corrosion and gunk. This heavy-duty front axle housing a direct bolt-on, fitting like OEM. Teraflex’s bolt-on axle housing is engineered, designed and built in the USA.

      Moderately Difficult Installation. Installation of this Teraflex Front Tera60 Axle with Locking Hubs - 5.38 Gears will take roughly 5 hours. The heavy-duty replacement is a direct fit and should install as OEM would. Tools required for the job should not be more than simple hand tools.

      1-Year Unlimited Mileage Warranty & Lifetime Structural Warranty. This full float axle comes with a 1-year unlimited mileage warranty and a lifetime structural warranty. For more info on the warranty please contact the manufacturer.

      Application. The Front Tera60 Axle with Locking Hubs & 5.38 Gears fits all 2007-2018 Jeep Wrangler JK models.

      Fitment:

      Details

      Teraflex 3606538

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Front Axle
      5.0

      Customer Reviews (2)

      Brand Image

      Reviews of Teraflex Drivetrain products have an average rating of 4.8 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Wrangler

      • JK Rubicon 2 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
      • JK Rubicon 4 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
      • JK Wrangler 2 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
      • JK Wrangler 4 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
