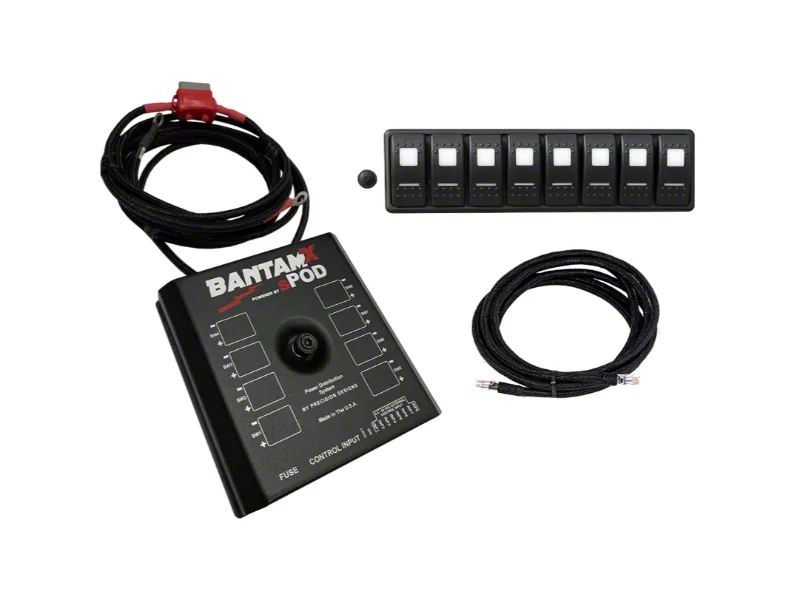

sPOD BantamX Modular with 36-Inch Battery Cable; Blue LED (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

The BantamX will save hours of wiring and installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories.

Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.

Features:

BantamX Modular w/ Blue LED with 36 Inch battery cables

Fully programmable, digital controlled system

8 circuits rated at 30 amps at 12.5 VDC per circuit

16-position terminal block (easily attach accessories)

2 controller ports (RJ45) for Ethernet cables

Integrated low voltage cutoff (LVCO) battery protection w/ optional override

One ATM mini-style fuse for LVCO protection and reset

Failsafe self-healing fault protection system (from 1.5 to 30amps)

Current-sensing MOSFETs controlled by a microprocessor (no fuses and relays)

50amp auto-resetting circuit breaker

Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket

Operates on 12VDC or 24VDC

8-position input terminal block for controlling outputs

Built-in Bluetooth capabilities for remote control

Protection against: overheating, over-current, shorts, reverse polarity and field collapse

Ignition control and safety lock-out for switches 1 and 2 (optional)

Up to 4 BantamX units can be daisy chained and controlled by one Touchscreen

On-demand wireless software updates/upgrades

Hardware:

Powder coated steel base w/ built in hardware

Silicone gasket for weatherproofing

Aluminum lid

Vehicle specific mounting options

Robust insulated base and cover

Features Available Through sPOD Mobile App (free):

Each switch can be programmed for:

Dimming

Strobe

Flash

Momentary

Switch Linking

On Road and Off Road mode of operation

The following features are only available through the purchase of our Pro-Series App:

Circuit timers

Switch lockout

Initial startup current for each circuit is raised to 65amps for 5 seconds

Program any circuit to be always on while still maintaining fault protection

Option to disable deep sleep mode

Selectable auto restart after circuit shuts down from over current/short

Programmable Current Limiting (in 2amp increments up to 30amps)

Selectable auto restart for current limiting shut down

Selectable Latch or Momentary actions for inputs

Programmable ignition control for all 8 circuits

Variable strobe function to create custom flash/strobe patterns

External Controller Options (not included with system and can only be used in conjunction with an sPOD controller):

Third party switches

Computers

Arduino

Raspberry Pi

Alpine Audio systems KAC-001 head unit controller

Sensors, thermostats, pressure switches, fan controllers and more

Switch Panel:

Switch panel with eight dual lit LED Blue switches (installed and pre-wired)

All wires are wrapped in high-temp abrasion resistant nylon braided sleeving.

Comes with a 10 foot CAT-6 Ethernet, can be extended up to 25-feet from BantamX)

Each switch has 2 programmable modes: strobe or flash

Aluminum panels are formed, welded and powder coated

Carling Technologies Contura switches (certified to IP66/68 - marine/harsh environment)

Controlled lower pilot light (push button)

Custom laser-etched rockers are available

Ability to daisy chain panels for remote operations (ie: panel in cab and panel at rear of truck)

Auto safe system shutdown when panel is unplugged
