How to Install Rough Country Light Bar for Modular Winch Bumper (07-18 Wrangler JK) on your Jeep Wrangler

Installation Time

20 minutes

Tools Required
  • Ratchet with 5/16 Hex Socket or a 5/16 Hex Allen Wrench
  • Utility Knife (Razor Blade) to open the product shipping box
Extreme Terrain
Shop Parts in this Guide

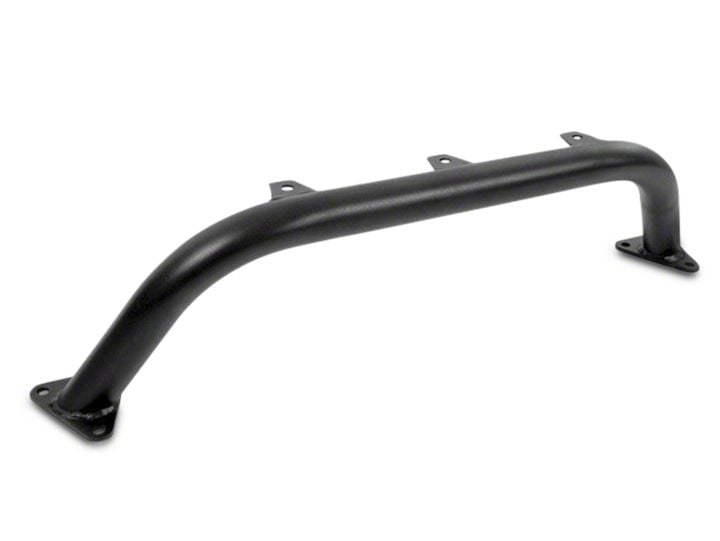

There is a total of 1 part. 1 – Light Bar


Note: The Rough Country Light Bar for Modular Winch Bumper was installed on the Rough Country Stubby Front Winch Bumper.



Before Install

1. Remove the three (3) Hex bolts on the driver and passenger side of the bumper using a ratchet with 5/16 Hex socket or 5/16 Hex Allen wrench. Hold onto these bolts as you will use them to install the Light Bar.


2. Place the Light Bar aligning the holes with the holes on the bumper.


3. Place the three (3) Hex bolts through the light bar and into the bumper on the drive and passenger side. Do not tighten until all six (6) bolts are in place.



4. Tighten the three (3) Hex bolts on the driver and passenger side. Recommended tightening one (1) bolt alternating between the driver and passenger sides until all six (6) bolts are tight.



After Install

Installation Instructions Written by ExtremeTerrain Customer Brian Voelzke 07/16/2018
