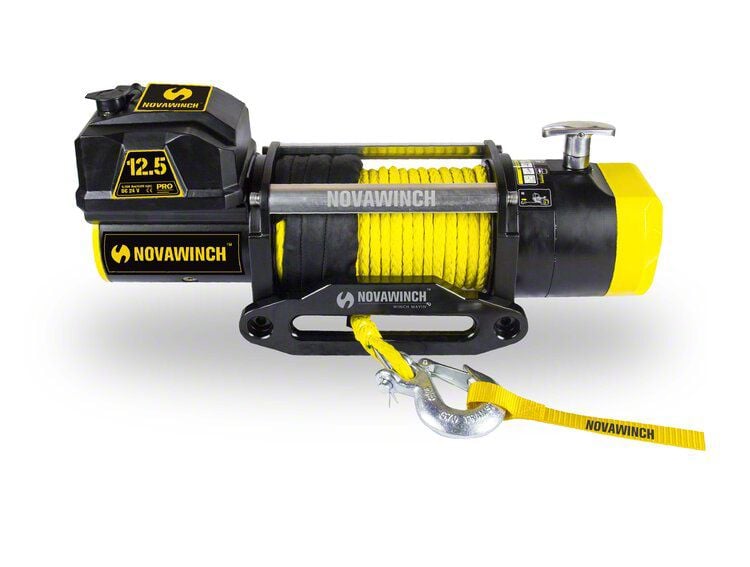

Novawinch PRO 12,500 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)
Verify parts fit and get product recommendations.
Tundra Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-870-8556 Chat Now
$0.00
Want $10? Write one of the first 5 reviews 5.0 Novawinch Accessories product ratings
Our Price

$819.05

Up to 10% off for Military & First Responders! See Details

In Stock

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Description, Q&A

      Description

      Pro 12500 Synthetic Rope. From fast line speeds to low amp draw and a remarkable brake, this is the top of the line winch without the high price.

      5 things to know about this winch:

    • It's fast. Sealed 6.0 HP motors deliver a quick but safe 52 FPM line speed at a low 50 Amp draw.
    • Smart electronics: Anti-high temperature silver pad, 500A Sealed contactor. Only 360A full load current which is the lowest in the industry field. Contactor will never get stuck.
    • IP67 rated keeps elements out and winch running.
    • Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.
    • Made to last: stainless steel parts, 3 aluminum tie bars for rigidity, and 45 degree clocking freespool for tricky mounts.

      • Specifications

      • Rated Line Pull: 12,500 lbs (5670kgs)
      • Motor(Series wound): DC 12V: 6.4hp/4.7kW
      • Gear Box: 2-Stage Planetary/2-Stage Spur Gear
      • Gear Ratio: 171:1
      • Clutch: Pull & Turn
      • Braking Action: Automatic, 100% Load Holding Brake in gear box
      • Fairlead: Aluminum Hawse
      • Synthetic Rope: 3/8″×85.3′(9.2mm×26m)
      • Drum Size: 2.48″×8.74″(63mm×222mm)
      • Remote: Rugged Rubber, Toggle switch, 12'
      • Dimensions: 23.86″×6.77″×9.84″(606mm×172mm×250mm)
      • Mounting Bolt Pattern: 10″×4.5″(254mm×114.3mm)
      • Weight: 95.8 lbs(43.5kgs)

      Line Pull No Load Full Load
      Line Speed 49.2  FPM (15 MPM) 3.3 FPM (1 MPM)
      Motor Current 50 Amps 390 Amps

      Novawinch 701001068584
