Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic Shocks (07-15 5.7L Tundra Double Cab, CrewMax, Excluding TRD Pro)Find parts that fit my vehicle
Item TU1922
$0.00
8 Reviews
Our Price
$5,203.25 kit
Out of Stock
$149.00 Oversized Item Fee
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Fabtech 6-inch Suspension Lift Kit
- Increases Ground Clearance for Improved Off-Roading
- Front Dirt Logic 2.5 Resi Coilovers
- Rear Dirt Logic 2.25 Shock Absorbers
- Extended Ductile Iron Steering Knuckles
- Front Strut Spacers and Rear Lift Blocks
- High Arched Crossmember
- Heavy Duty 1/4-inch Thick Differential Steel Skid Plate
- Accommodates up to 35 x 12.5-inch Tires
- Requires use of 18-inch or Larger Wheels
- Fits 2007-2015 5.7L Automatic Tundra Double Cab and CrewMax; Excludes TRD Pro
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Six Inches of Lift. Your Tundra's stock suspension can be limited when it comes to off-roading, that's why you need a lift kit that was specifically designed to take on the great outdoors. Luckily, this Performance 6-inch Lift Kit from Fabtech has just what you need to help you drive over boulders, fallen logs, and other trail obstacles. With 6-inches of lift, this kit can accommodate tires up to 35 x 12.5 in size mounted on 18 or 20-inch wheels. This Fabtech 6-inch Performance Lift System features iron steering knuckles as well as steel lift blocks and strut spacers for extra strength. What’s more, the included Dirt Logic 2.5 Resi Coilover and 2.25 Rear Shocks provide a comfortable ride, even when tested across rough terrain.
Dirt Logic Resi Coilovers and Shocks. The included Dirt Logic Coilovers and Shock Absorbers have been specially tuned to work in conjunction with the other components in the Kit, resulting in superior ride control. The Resi Coilovers feature a 2.5-inch OD stainless steel body, 2.25-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod with cold wound coil springs and a 2.5-inch OD aluminum reservoir, to provide incredible dampening capacity for aggressive off-road driving. The Shocks feature a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod, making them significantly tougher when compared to stock.
Iron Steering Knuckles. Fabtech includes a set of heavy duty replacement steering knuckles in their 6-inch Performance Lift Kit. These extended length steering knuckles are manufactured from ductile iron for superior strength. These knuckles have been designed to operate within the factory steering geometry.
Lift Blocks and Spacers. The included Strut Spacers and Rear Lift Blocks include in this Performance Lift Kit have been manufactured from high grade steel for superior strength and extra rigidity. The components are then completed in a durable black powder coat finish for long lasting corrosion resistance.
Welding Required. This is not a bolt-on kit. It should be noted that cutting, drilling and welding is required for installation. With all the necessary hardware included, this Lift kit can be installed in about 8 to 10 hours time. Professional installation is highly recommended.
Application. This Fabtech 6-inch Performance Lift System with Dirt Logic Resi Coilovers and Shocks is designed to fit 2WD or 4WD 2007-2015 5.7L Tundra Double Cab and CrewMax models equipped with an automatic transmission, excluding the TRD Pro.
Recommended Tire Sizes. This Kit is not for use with OEM wheels and tires, requires the use of 18-inch or larger wheels.
Dirt Logic Resi Coilovers and Shocks. The included Dirt Logic Coilovers and Shock Absorbers have been specially tuned to work in conjunction with the other components in the Kit, resulting in superior ride control. The Resi Coilovers feature a 2.5-inch OD stainless steel body, 2.25-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod with cold wound coil springs and a 2.5-inch OD aluminum reservoir, to provide incredible dampening capacity for aggressive off-road driving. The Shocks feature a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod, making them significantly tougher when compared to stock.
Iron Steering Knuckles. Fabtech includes a set of heavy duty replacement steering knuckles in their 6-inch Performance Lift Kit. These extended length steering knuckles are manufactured from ductile iron for superior strength. These knuckles have been designed to operate within the factory steering geometry.
Lift Blocks and Spacers. The included Strut Spacers and Rear Lift Blocks include in this Performance Lift Kit have been manufactured from high grade steel for superior strength and extra rigidity. The components are then completed in a durable black powder coat finish for long lasting corrosion resistance.
Welding Required. This is not a bolt-on kit. It should be noted that cutting, drilling and welding is required for installation. With all the necessary hardware included, this Lift kit can be installed in about 8 to 10 hours time. Professional installation is highly recommended.
Application. This Fabtech 6-inch Performance Lift System with Dirt Logic Resi Coilovers and Shocks is designed to fit 2WD or 4WD 2007-2015 5.7L Tundra Double Cab and CrewMax models equipped with an automatic transmission, excluding the TRD Pro.
Recommended Tire Sizes. This Kit is not for use with OEM wheels and tires, requires the use of 18-inch or larger wheels.
- Tire Size - 35/12.50R18; Wheel Size - 18×9 with 4-1/2 inch backspacing with minor trimming
- Tire Size - 295/70R18; Wheel Size - 18×9 with 4-1/2 inch backspacing with minor trimming
- Tire Size - 35/12.50R20; Wheel Size - 20×9 with 5 inch backspacing with minor trimming
Fitment:
- 2007 Toyota Tundra
- 2008 Toyota Tundra
- 2009 Toyota Tundra
- 2010 Toyota Tundra
- 2011 Toyota Tundra
- 2012 Toyota Tundra
- 2013 Toyota Tundra
- 2014 Toyota Tundra
- 2015 Toyota Tundra
Fabtech K7046DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

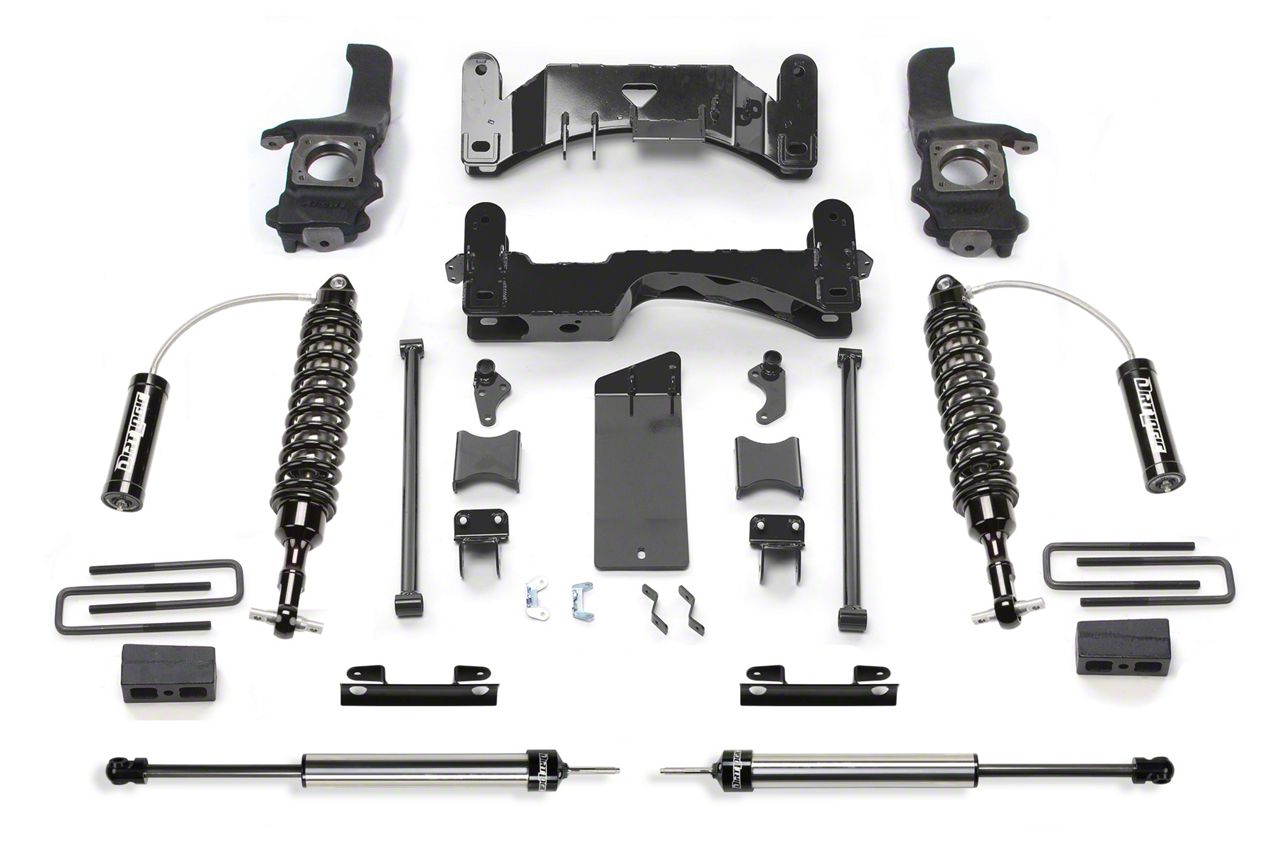

What's in the Box
- (2) Bumpstop Mounts
- (2) Carrier Bearing Spacers
- (1) Skid Plate
- (2) Spindles
- Front Crossmember
- Rear Crossmember
- (2) Diff Drop Brackets
- (2) Sway Bar Drop Brackets
- (2) Impact Strut Mounts
- (2) Weld In Plates
- (2) Rear Lift Blocks
- (2) Shock Spacers
- Differential Vent Hose - Large
- Differential Vent Hose - Small
- Rear ABS Bracket Extension
- (3) Rear Brake Line Bracket Ext.
- (2) Tie Rod Ends
- (2) Brake Hose Mount Brackets
- (2) Body Mount Weld-in Gussets
- Installation Hardware
- Instructions
