Find Control Arms & Accessories for your Tundra
Fabtech 4-Inch Uniball Upper Control Arm System with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic Shocks (07-15 Tundra)Find parts that fit my vehicle
Item TU1921
$0.00
1 Reviews
Our Price
$4,154.07 kit
Out of Stock
$149.00 Oversized Item Fee
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Add Local Installation
$399.00
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Fabtech 4-inch Upper Control Arm System
- Increases Ground Clearance for Improved Off-Roading
- Front Dirt Logic 2.5 Reservoir Coilovers
- Rear Dirt Logic 2.25 Shock Absorbers
- Extended Ductile Iron Steering Knuckles
- Tubular Upper Control Arms
- PTFE Lined Stainless Steel American Uniball Bushings
- Rear Lift Block Spacers
- Accommodates up to 35 x 12.5-inch Tires
- Requires use of 18-inch or Larger Wheels
- Fits 2007-2015 Toyota Tundra Models
| Brand | Fabtech |
| Control Arms Placement | Front Upper |
Description
Four Inches of Lift. Take on what the great outdoors can throw at you by upgrading your Tundra's stock suspension with a 4-inch Uniball Upper Control Arm System from Fabtech. With 4-inches of lift, this kit can accommodate tires up to 35 x 12.5 in size mounted on 20-inch wheels. This Fabtech 4-inch System features tubular upper control arms with PTFE lined stainless steel American uniball bushings. What’s more, the included Dirt Logic 2.5 Reservoir Coilover and 2.25 Rear Shocks provide a comfortable ride, even when tested across rough terrain.
Tubular Control Arms. Fabtechs tubular upper control arms are built with the same materials found on Trophy Trucks. The included 1.50-inch OD tubular control arms are manufactured from 0.120-inch wall 4130 chromoly tubing for superior strength and are then completed in a durable black powder coat finish for long lasting corrosion resistance. These control arms feature 0.250-inch wall DOM bushing barrels with PTFE lined 1-inch ID stainless steel American Uniballs. The included heat treated, 17-4 stainless steel Uniball pins fit into the factory ball joint taper without modifications to the spindle for an easy return to stock feature.
Dirt Logic Reservoir Coilovers and Shocks. The included Dirt Logic Reservoir Coilovers and Shock Absorbers have been specially tuned to work in conjunction with the other components in the Kit, resulting in superior ride control. The Reservoir Coilovers feature a 2.5-inch OD stainless steel body, 2.25-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod with cold wound coil springs and a 2.5-inch OD aluminum reservoir, to provide incredible dampening capacity for aggressive off-road driving. The Shocks feature a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod, making them significantly tougher when compared to stock.
Iron Steering Knuckles. Fabtech includes a set of heavy duty replacement steering knuckles in their 4-inch Lift Kit. These extended length steering knuckles are manufactured from ductile iron for superior strength. These knuckles have been designed to operate within the factory steering geometry.
Lift Blocks. The included 1-inch Rear Lift Blocks include in this Performance Lift Kit have been manufactured from high grade steel for superior strength and extra rigidity. The components are then completed in a durable black powder coat finish for long lasting corrosion resistance.
Welding Required. This is not a bolt-on kit. It should be noted that cutting, drilling and welding is required for installation. With all the necessary hardware included, this Lift kit can be installed in about 8 to 10 hours time. Professional installation is highly recommended.
Application. This Fabtech 4-inch Uniball Upper Control Arm System with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic Shocks is designed to fit 2WD and 4WD 2007-2015 Tundra models.
Recommended Tire Size. This Kit is not for use with OEM wheels and tires, requires the use of 18-inch or larger wheels.
Tubular Control Arms. Fabtechs tubular upper control arms are built with the same materials found on Trophy Trucks. The included 1.50-inch OD tubular control arms are manufactured from 0.120-inch wall 4130 chromoly tubing for superior strength and are then completed in a durable black powder coat finish for long lasting corrosion resistance. These control arms feature 0.250-inch wall DOM bushing barrels with PTFE lined 1-inch ID stainless steel American Uniballs. The included heat treated, 17-4 stainless steel Uniball pins fit into the factory ball joint taper without modifications to the spindle for an easy return to stock feature.
Dirt Logic Reservoir Coilovers and Shocks. The included Dirt Logic Reservoir Coilovers and Shock Absorbers have been specially tuned to work in conjunction with the other components in the Kit, resulting in superior ride control. The Reservoir Coilovers feature a 2.5-inch OD stainless steel body, 2.25-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod with cold wound coil springs and a 2.5-inch OD aluminum reservoir, to provide incredible dampening capacity for aggressive off-road driving. The Shocks feature a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod, making them significantly tougher when compared to stock.
Iron Steering Knuckles. Fabtech includes a set of heavy duty replacement steering knuckles in their 4-inch Lift Kit. These extended length steering knuckles are manufactured from ductile iron for superior strength. These knuckles have been designed to operate within the factory steering geometry.
Lift Blocks. The included 1-inch Rear Lift Blocks include in this Performance Lift Kit have been manufactured from high grade steel for superior strength and extra rigidity. The components are then completed in a durable black powder coat finish for long lasting corrosion resistance.
Welding Required. This is not a bolt-on kit. It should be noted that cutting, drilling and welding is required for installation. With all the necessary hardware included, this Lift kit can be installed in about 8 to 10 hours time. Professional installation is highly recommended.
Application. This Fabtech 4-inch Uniball Upper Control Arm System with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic Shocks is designed to fit 2WD and 4WD 2007-2015 Tundra models.
Recommended Tire Size. This Kit is not for use with OEM wheels and tires, requires the use of 18-inch or larger wheels.
- Tire Size - 35/12.50R18; Wheel Size - 18×9 with 4-1/2 inch backspacing with minor trimming
- Tire Size - 295/70R18; Wheel Size - 18×9 with 4 1/2 inch backspacing with minor trimming
- Tire Size - 35/12.50R20; Wheel Size - 20×9 with 5 inch backspacing with minor trimming
Fitment:
- 2007 Toyota Tundra
- 2008 Toyota Tundra
- 2009 Toyota Tundra
- 2010 Toyota Tundra
- 2011 Toyota Tundra
- 2012 Toyota Tundra
- 2013 Toyota Tundra
- 2014 Toyota Tundra
- 2015 Toyota Tundra
Fabtech K7045DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

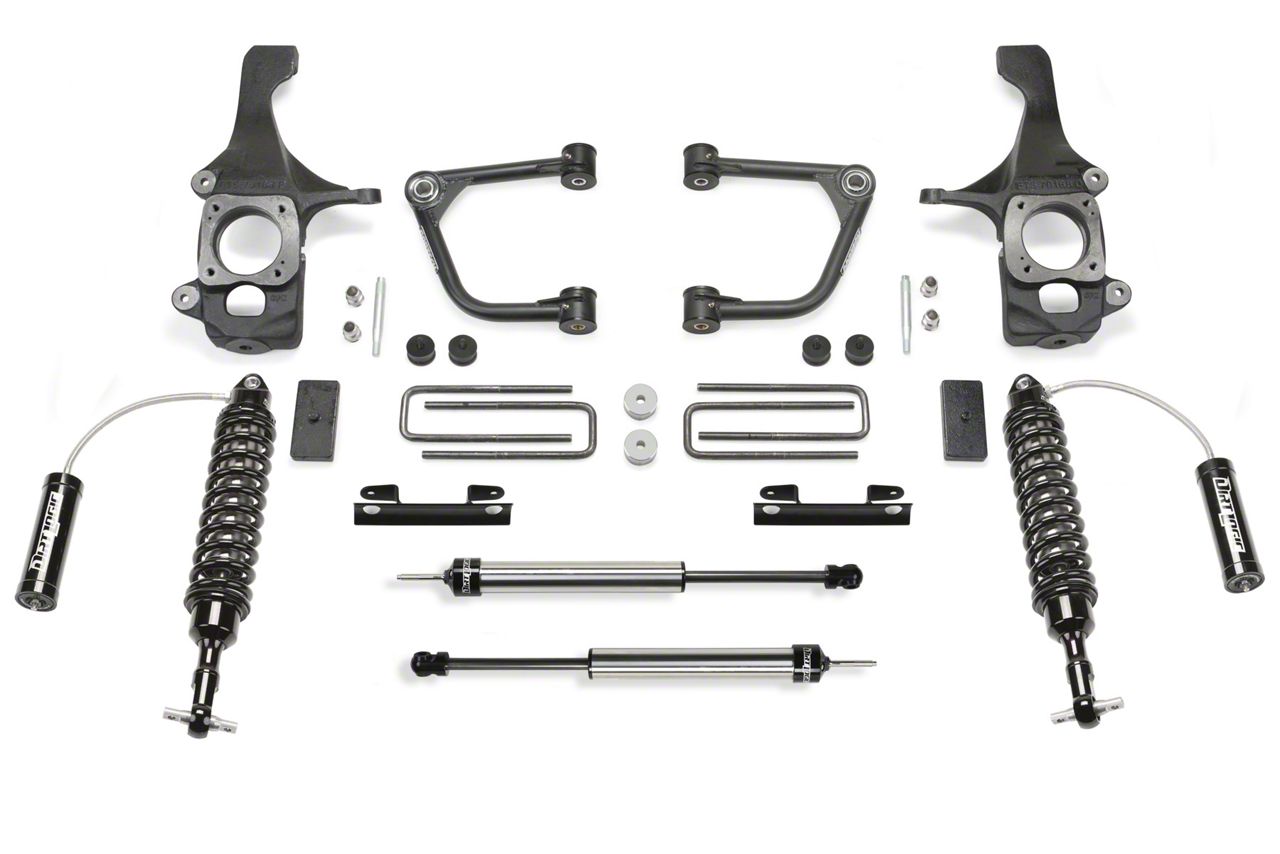

What's in the Box
- (2) Dirt Logic 2.5 Resi Coilovers
- (2) Dirt Logic 2.25 Shocks
- (2) Upper Control Arms
- (2) Rear Block Spacers
- (2) Steering Knuckles
- Installation Hardware
