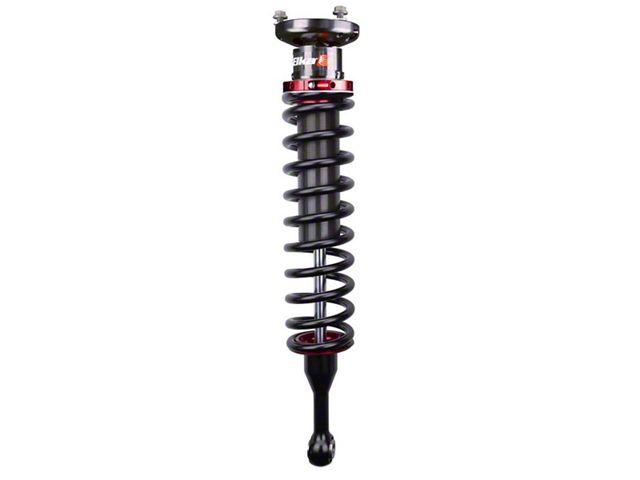

Elka Suspension 2.5 IFP Front Coil-Overs for 2 to 3-Inch Lift (07-21 Tundra)Find parts that fit my vehicle

Description. Increase the off-road capabilities while improving the comfort and handling of your Tundra

The 2.5 IFP shocks provide the optimal combination of:

Firm and stable handling for driving on desert and fire roads (sports car feeling);

Plush compliance while off-road driving over washboard;

Strong ramping effect for extra bottom-out protection over large dips and washes;

Maximum articulation and traction for rock climbing.

BENEFITS

High-performance off-road capabilities

Improved handling and comfort for casual driving

Better traction

Provides leveling capabilities for better weight distribution

Increased protection against bottoming-out

RIDE ENHANCEMENTS

Spring setup optimized for each setup

Better attenuation of vibration, leading to major noise reduction in the cabin (much less squeak and rattle)

Damping characteristics optimized for each truck and setup, providing a smoother ride

Increased comfort in both on road and off-road conditions, especially over washboard and square-edge impacts

More stable and more predictable handling

Reduced front-end diving when cornering or braking

Reduced rear-end bucking and lifting

Increased damping and spring rate for better handling when towing or loading truck

TECHNICAL FEATURES

Massive 2.5 in. (56mm) hard-anodized aluminum body for cooler operation

Gas-pressurized design with internal floating piston to prevent cavitation and fading

Internal hydraulic valving optimized for each vehicle platform

Built from CNC-machined and forged aluminum parts, aluminum bodies and premium-quality internal components

Heavy-duty 3/4 in. (19mm) induction-hardened shaft

Triple sealing system with dust wiper, high-pressure step-seal and premium quality o-ring

Direct, bolt-on replacement that uses stock shocks location

Proprietary ultra-low friction, light viscosity semi-synthetic oil blend, ultra-resistant to high operating temperature

Coilover models use Elka’s durable high-tensile alloy springs or Eibach springs (depending on model & configuration)

Fully rebuildable using affordable replacements parts and springs, multiple replacement valving shim stacks available

The 2.5 IFP model is a simple bolt-on upgrade over OEM shocks. They are a gas-pressurized design with internal floating piston to help prevent cavitation and fading.

This configuration is for use exclusively with aftermarket lift kits or upper control arms to accommodate between 2 in. to 3 in. of lift.

Ride height at the front is preset from our factory at approximately 2.5 in. of lift for most setups, actual ride height may vary depending on wheels dimensions and lift kit or upper control arms used.

Package includes two (2) side-specific front shocks

ADJUSTMENT

Spring Preload

Fitment:

• 2007 Toyota Tundra
• 2008 Toyota Tundra
• 2009 Toyota Tundra
• 2010 Toyota Tundra
• 2011 Toyota Tundra
• 2012 Toyota Tundra
• 2013 Toyota Tundra
• 2014 Toyota Tundra
• 2015 Toyota Tundra
• 2016 Toyota Tundra
• 2017 Toyota Tundra
• 2018 Toyota Tundra
• 2019 Toyota Tundra
• 2020 Toyota Tundra
• 2021 Toyota Tundra
