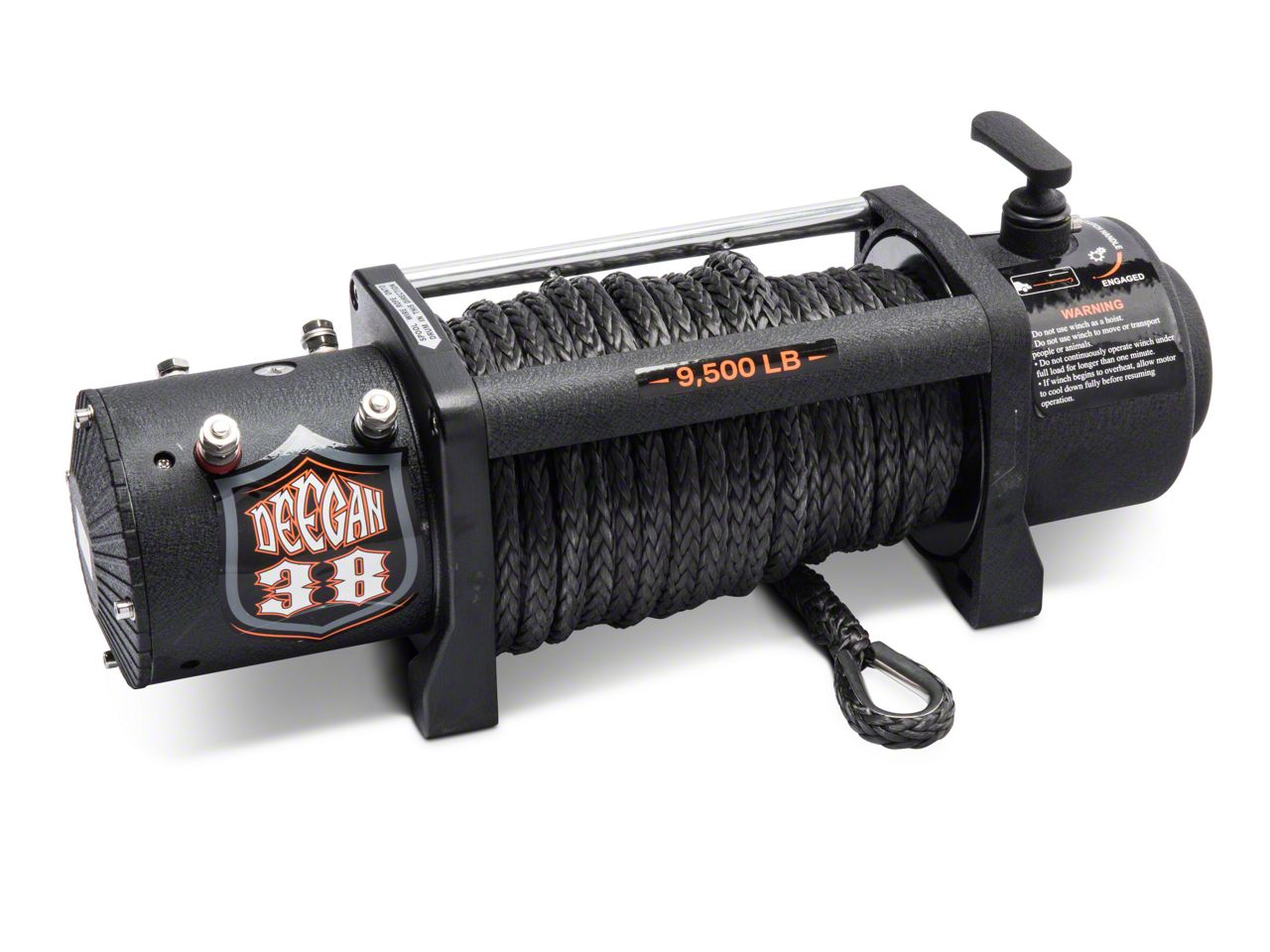

Deegan 38 by Mammoth 9,500 lb. Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item TR9256
$464.99
18 Reviews
Clearance Price
-19% $464.99 Was $574.99
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 9,500 lb. Single-Line Pulling Rating
- 5.5 HP 12-Volt Series Wound Electric Motor
- 3 Stage Planetary Gear with 195.4:1 Gear Ratio
- 94ft Synthetic Rope Included
- Wireless Remote Control
- Textured Black Powder Coat Finish
- Hook and Hawse Fairlead are Included
- Overall Dimensions: 21.1-inch x 6.3-inch x 8.6-inch
- Mounting Bolt Pattern: 254mm x 114.3mm
- Special Deegan 38 Badging
- Limited Lifetime Manufactures Warranty
- Fits All Toyota 4Runner Models
| Brand | Deegan 38 by Mammoth |
| Winch Capacity | 9500 lbs |
| Winch Rope Type | Synthetic Rope |
| Winch Remote Type | Wireless |
Description
Recovery Power. Whether you're a beginner or seasoned off-roader, you should outfit your rig with a reliable recovery system, even on the easiest of trails. It is just for this reason that you should equip your Toyota 4Runner with a 9,500 lb Winch from Deegan 38. This Deegan 38 Winch which boasts a powerful 5.5 horsepower motor, a Synthetic rope, and a wireless remote control that will allow you to stand clear of danger when in operation. Ideal for work-site and trail applications, this Deegan 38 Winch will pull you or your friends out of the messiest of situations.
Heavy Duty 9,500 LB Winch. Driven by a powerful 5.5 HP series-wound 12-volt electric motor, this Deegan 38 Winch features a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, to provide 9,500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this Deegan 38 Winch to get you out of trouble.
Additional Features. This Deegan 38 9,500 lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the synthetic rope while keeping it from binding. This Wireless Deegan 38 Winch also includes a wired remote control with a 12 foot lead as a back-up.
Bolt-on Installation. Deegan 38 designed their winch to be a direct bolt-on upgrade that can be installed in about an hour's time using just basic hand tools. With overall dimensions measuring 21.1-inch × 6.3-inch × 8.6-inch and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All the necessary mounting hardware is included making this Winch a straight forward install.
Lifetime Limited Warranty. To ensure the highest quality, Deegan 38 backs their winches with a Lifetime Limited Warranty. Deegan 38 warrants that, with respect to the mechanical and non-electrical components, the winch will be free of defects in material and workmanship for the life of the product; with respect to the electrical components of the winch (e.g.: motor, solenoid, control), it shall be free of defects in material and workmanship for one (1) year from the date of purchase. Subject to the terms and conditions, please see manufacturer's full warranty for complete details.
Application. This Deegan 38 9,500lb Winch with Synthetic Rope and Wireless Remote Control is designed for use on all Toyota 4Runner models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 9,500 LB Winch. Driven by a powerful 5.5 HP series-wound 12-volt electric motor, this Deegan 38 Winch features a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, to provide 9,500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this Deegan 38 Winch to get you out of trouble.
Additional Features. This Deegan 38 9,500 lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the synthetic rope while keeping it from binding. This Wireless Deegan 38 Winch also includes a wired remote control with a 12 foot lead as a back-up.
Bolt-on Installation. Deegan 38 designed their winch to be a direct bolt-on upgrade that can be installed in about an hour's time using just basic hand tools. With overall dimensions measuring 21.1-inch × 6.3-inch × 8.6-inch and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All the necessary mounting hardware is included making this Winch a straight forward install.
Lifetime Limited Warranty. To ensure the highest quality, Deegan 38 backs their winches with a Lifetime Limited Warranty. Deegan 38 warrants that, with respect to the mechanical and non-electrical components, the winch will be free of defects in material and workmanship for the life of the product; with respect to the electrical components of the winch (e.g.: motor, solenoid, control), it shall be free of defects in material and workmanship for one (1) year from the date of purchase. Subject to the terms and conditions, please see manufacturer's full warranty for complete details.
Application. This Deegan 38 9,500lb Winch with Synthetic Rope and Wireless Remote Control is designed for use on all Toyota 4Runner models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
- Replacement Hardware – SKU U2417H
Deegan 38 by Mammoth U1047
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 9500lb Winch
- 94ft Synthetic Rope
- Hawse Fairlead
- Remote Control Lead
- Solenoid
- Wiring Harness
- Rope Hook
- Red Line Flag
- Hardware
