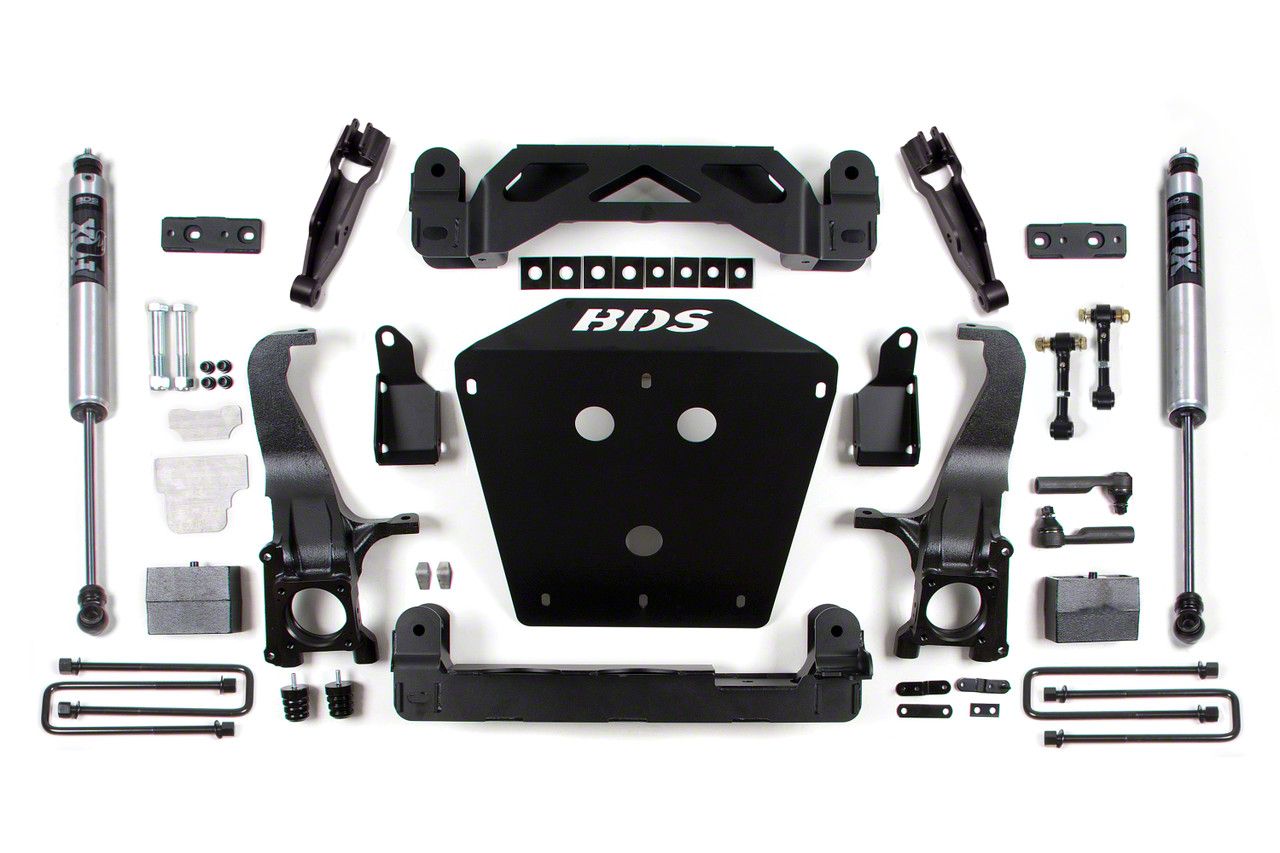

BDS 7-Inch Suspension Lift Kit with FOX 2.0 Performance Shocks (07-15 Tundra, Excluding TRD Pro)Find parts that fit my vehicle

BDS813FS will bDS steps up the performance and capability of the 2007-2015 Toyota Tundra 4WD trucks with a 7-inch suspension lift kit. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes a lower strut extension high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions brake line brackets supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear this kit utilizes heavy duty cast steel lift blocks brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features-

Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
Multi-leaf progressive design for smooth ride
Anti-friction pads provide a smooth and quiet ride
Details-

Front Lift Height: 7 IN
Front Lift Method: Cross Member
Installation Difficulty: moderate
Installation Time: 8 Hrs
Installation Tools: saw reciprocating-strutCompressor-welder
Rear Lift Height: 4 IN
Rear Lift Method: Block
Rear Shock Option: FOX 2 0 Performance Series
Shocks Included: Yes
Notes-

Requires frame bracket modification and welding on 4wd models.
Stock 18" wheels can not be installed. Factory 20" wheels with more than 6.25" backspacing can not be installed.
Models with two piece rear drive line would require rear drive shaft modification.
When kit is installed on 2WD models the differential brackets will not be used.
Models equipped with 6 piston calipers require modification.

Fitment:

• 2007 Toyota Tundra
• 2008 Toyota Tundra
• 2009 Toyota Tundra
• 2010 Toyota Tundra
• 2011 Toyota Tundra
• 2012 Toyota Tundra
• 2013 Toyota Tundra
• 2014 Toyota Tundra
• 2015 Toyota Tundra
