Find Winches Top Level for your 4Runner

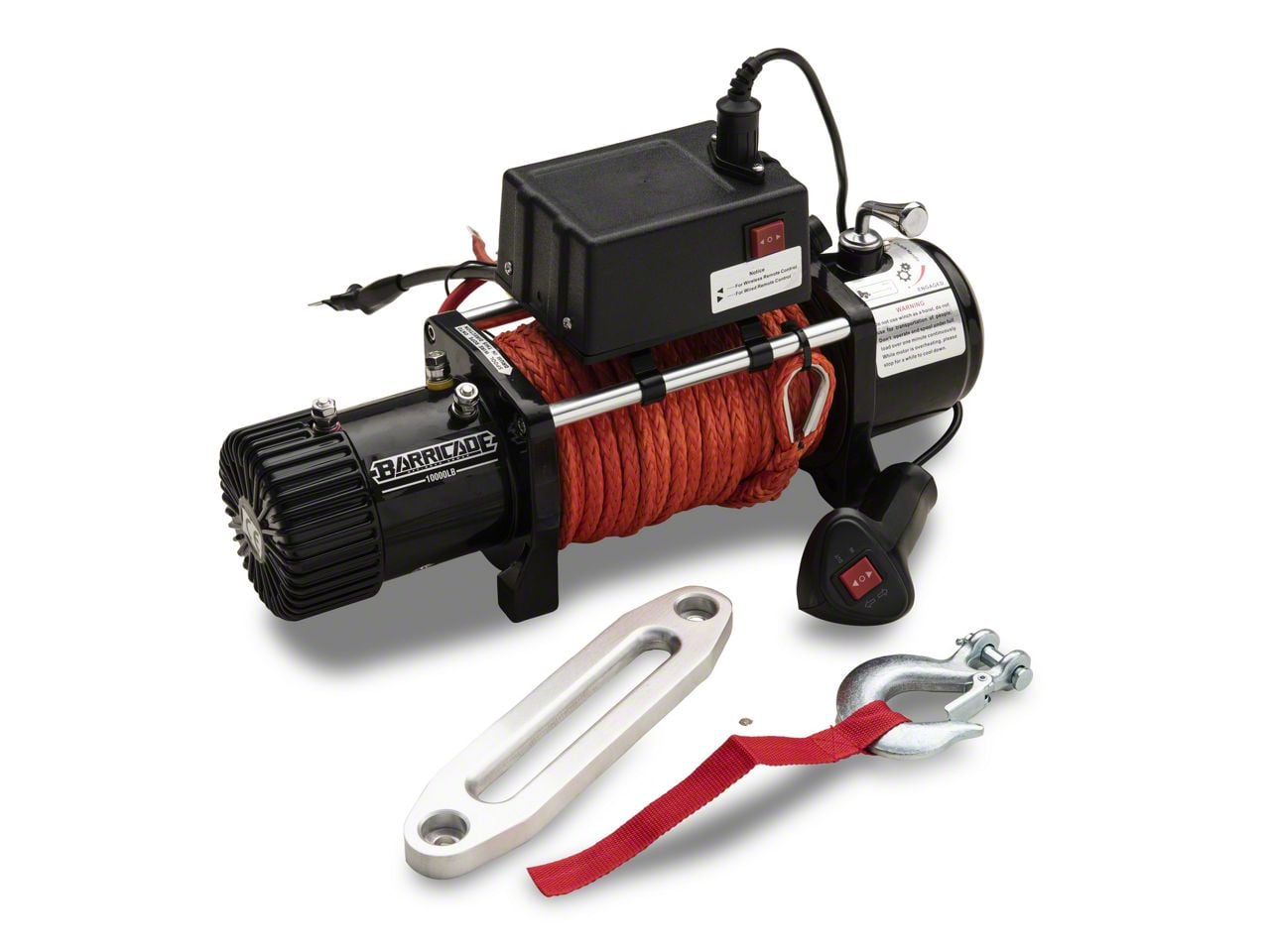

Barricade 10,000 lb. Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item TR9243
$0.00
24 Reviews
Our Price
$549.99
Out of Stock
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 10,000 lb. Single-Line Pulling Rating
- 5.5 HP 12-Volt Series Wound Electric Motor
- Three Stage Planetary Gear with 195.8:1 Gear Ratio
- 91 Foot Bright Orange Synthetic Rope Included
- Wired Remote Switch with 12 Foot Lead
- Durable Black Powder Coat Finish
- Hook, Hawse Fairlead, and Power Lead are Included
- Overall Dimensions: 21.1 × 6.3 × 8.6 Inches
- Mounting Bolt Pattern: 254mm X 114.3mm
- Weight: 56.88 Pounds
- Universal Application for all Vehicles
| Brand | Barricade |
| Winch Capacity | 10000 lbs |
| Winch Rope Type | Synthetic Rope |
| Winch Remote Type | Wired |
Description
Be Prepared For a Recovery Situation. It doesn't matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your 4Runner with a reliable recovery system like Barricade Off-Road's 10,000 lb Winch that includes a Synthetic Rope. This Barricade Winch will help you to get out of the messiest situations.
Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 10,000 lb Winch features a hawse fairlead that helps reduce wear and tear on the 91 foot orange synthetic rope while keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 10,000lb Winch with Synthetic Rope is designed for use on all Toyota 4Runner models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 10,000 lb Winch features a hawse fairlead that helps reduce wear and tear on the 91 foot orange synthetic rope while keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 10,000lb Winch with Synthetic Rope is designed for use on all Toyota 4Runner models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 16.5 ft./min
- 2000 lbs. - 13.68 ft./min
- 4000 lbs. - 11.55 ft./min
- 6000 lbs. - 8.9 ft./min
- 9500 lbs. - 6.43 ft./min
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, a winch cover is required when not in use.
Barricade U3148
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 10,000lb winch
- 91 foot Orange Synthetic Rope
- Hawse Fairlead
- Remote Control Lead
- Solenoid
- Wiring Harness
- Rope Hook
- Red Line Flag
- Hardware
