How to Install ZRoadz 6 in. Slim LED Light Bars Rear Window Hinge Mounting Brackets (07-18 Jeep Wrangler JK) on your Jeep Wrangler
Shop Parts in this Guide
1. Open the tailgate (Figure A).
Figure A
2. Raise the rear window (Figure B).
Figure B
3. Using a 10mm socket wrench, loosen one of the two bolts holding the hinge in place (Figure C). Note: Do not remove the two bolts holding the hinge in place entirely.
Figure C
4. Loosen the other bolt holding the hinge into place (Figure D).
Figure D
5. Slide the mounting bracket behind the hinge (Figure E).
Figure E
6. Tighten one bolt back slowly using a 10mm socket wrench (Figure F).
Figure F
7. Tighten the other bolt slowly using a 10mm socket wrench (Figure G).
Figure G
8. Ensure the mount is level (Figure H).
Figure H
9. Repeat Steps 3-8 on the other hinge.
Before

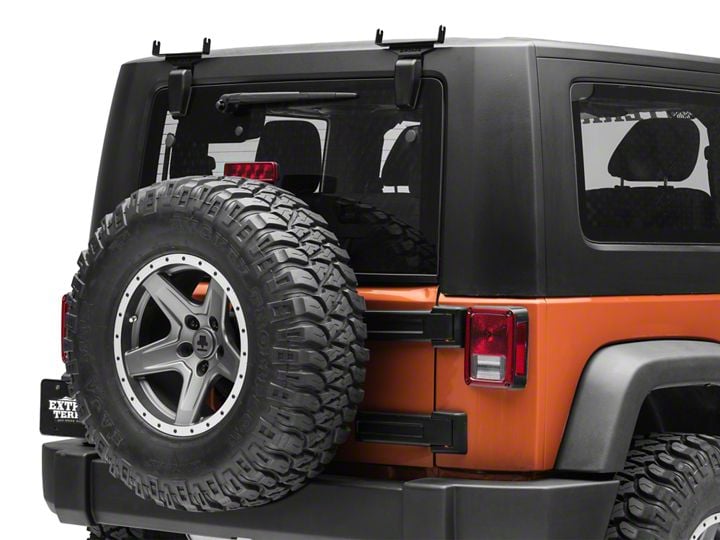

After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/15/2018
