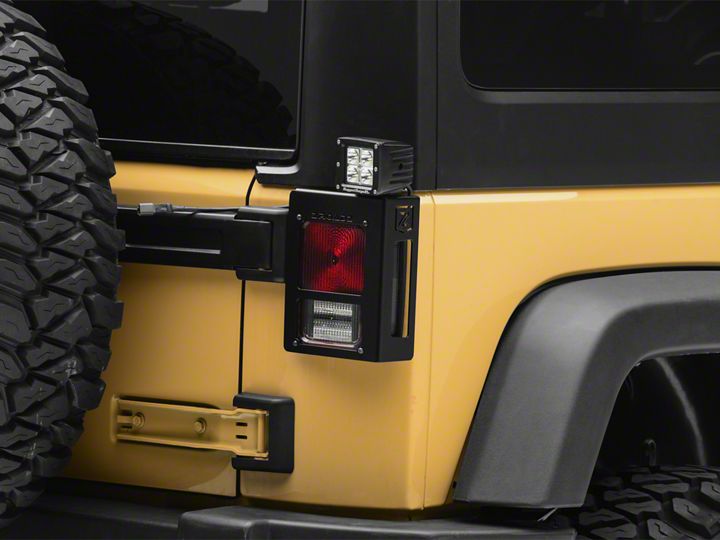

How to Install ZRoadz 3 in. LED Light Cube Tail Light Cage Mounting Brackets (07-18 Wrangler JK) on your Jeep Wrangler

Installation Time

1 hours

Tools Required
  • Box Cutter/Knife
  • Pliers
  • Philips Head Screw Driver
  • Crescent Wrench
Extreme Terrain
Shop Parts in this Guide

1. Carefully open the package using a box cutter or knife (Figure A) and pliers (Figure B). Ensure the hardware is included and undamaged.



2. Remove the two inside screws from the driver's side rear brake light (the longer screws) (Figure C).


3. Remove the two outside screws from the driver's side rear brake light (the shorter screws) (Figure D).


4. Connect the 3 in. cube LED to the top of the mounting bracket using the supplied hardware (Figure E). Tighten using a crescent wrench.


5. Slide the mounting bracket over the driver's side rear brake light and, using a Philips head screwdriver, screw the bolts on the inside and outside of the brake light into place (Figure F).


6. Connect the wiring harness to the battery, ensuring the positive ( ) wire is connected to the positive ( ) battery terminal and the negative (-) wire is connected to the negative (-) battery terminal.

7. Connect the wiring harness to the 3 in. cube LED.

8. Tuck the wiring (Figure G).


9. Repeat steps 2-8 on the passenger side.


Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 01/16/2018.
