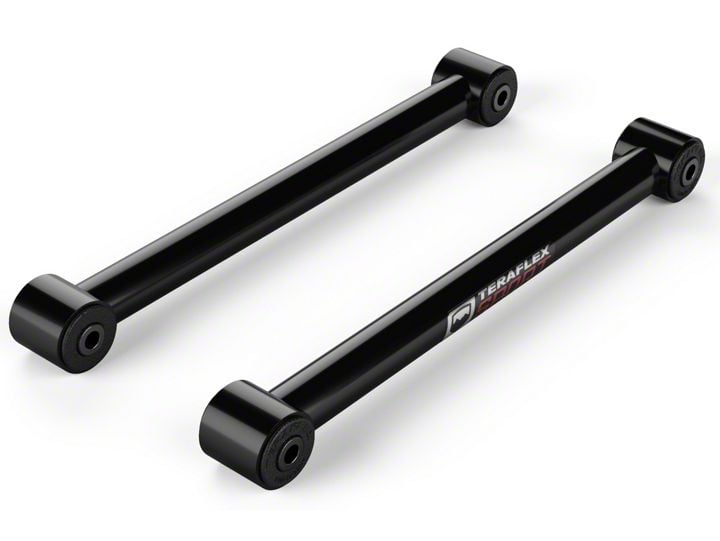

How to Install Teraflex Sport Fixed Rear Lower FlexArms for 2.5-3 in. Lift (07-18 Jeep Wrangler JK) on your Jeep Wrangler
Installation Time
60 minutes
Tools Required
- Box Cutter/Knife
- Jack
- Jack Stands
- Crescent Wrench
- 21mm Socket Wrench
- Torque Wrench
Shop Parts in this Guide
Installation Instructions:
1. Jack up the rear end of the vehicle at the axle.
2. Place the vehicle on jack stands (Figure A).
Figure A
3. Remove both of the tires.
4. Relax the top bolt of the driver's side rear lower control arm using a 21mm socket wrench (Figure B).
Figure B
5. Relax the bottom bolt of the rear lower control arm using a 21mm socket wrench and crescent wrench (Figure C).
Figure C
6. Remove the bolts and set the old control arm aside (Figure D).
Figure D
7. Put the TeraFlex rear lower control arm into place and run the bolt through the top end (Figure E).
Figure E
8. Tighten the bolt using the captured nut and a 21mm socket wrench (Figure F).
Figure F
9. Run the bolt through the bottom end (Figure G).
Figure G
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 11/11/2018
