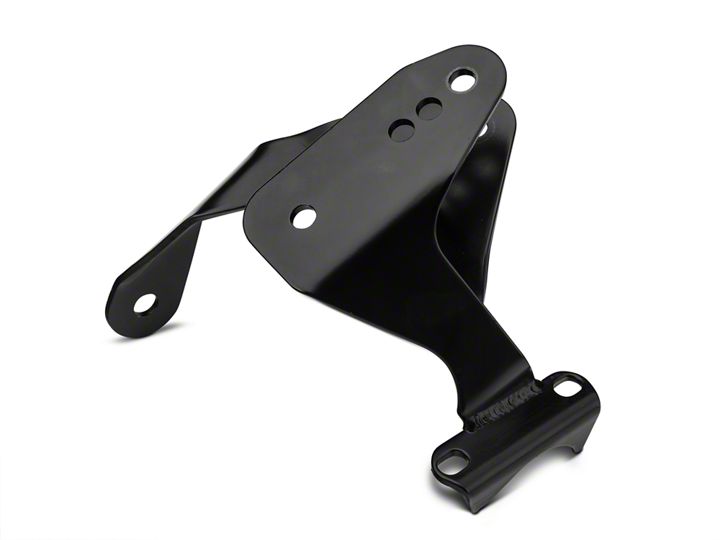

How to Install Teraflex Rear Trackbar Bracket for 2-6 In. lift on your 2007-2013 Wrangler

NOTE: The rear axle track bar bracket is designed as a bolt on. For extreme off-road use this bracket can be permanently welded to the axle tube and factory brackets.

INSTALLATION:

1. Properly support the rear of the vehicle. Remove the left rear tire.

2. Remove the track bar bolt at the rear axle bracket. You can leave the frame end attached.

3. Remove the left side rear lower control arm bolt at the axle end.

4. Install the new TeraFlex track bar bracket so it sits over the factory track bar bracket and lines up with the lower control arm bolt hole.

5. Reinstall the lower control arm bolt through the new TeraFlex track bar bracket.

6. Use the provided sleeve as a spacer and install the provided 1/2” by 3.5 bolt through the new bracket and into the factory bracket.

7. Install the provided U-bolt and nuts to clamp the bracket to the axle tube.

8. Reinstall the track bar, Torque all fasteners, reinstall the wheel and lower the vehicle to the ground

Torque Specs

1/2” by 3.5 bolt 75 ft. lbs.
U-Bolt             85 ft. lbs.
Trackbar Bolt   125 ft. lbs.
