Teraflex CRD60 HD Rear Axle with Full-Float and Truss for 3 to 6-Inch Lift (97-06 Jeep Wrangler TJ)Find parts that fit my vehicle

Item J117434
Product Image

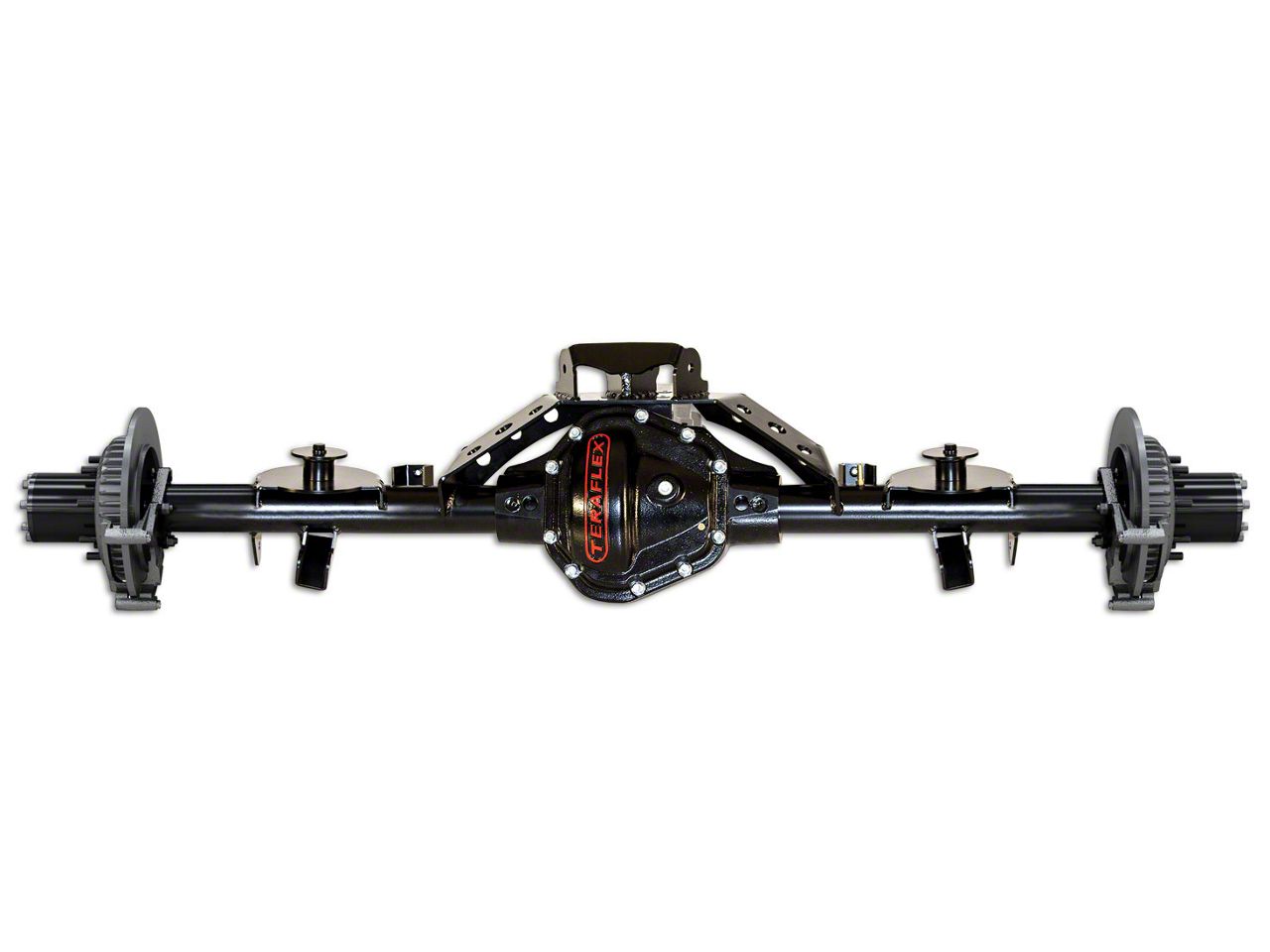

Teraflex CRD60 HD Rear Axle with Full-Float and Truss for 3 to 6-Inch Lift (97-06 Jeep Wrangler TJ)
Verify parts fit and get product recommendations.
Wrangler Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-870-8556 Chat Now
$0.00
5 Reviews
Our Price

$5,658.99 each

Up to 10% off for Military & First Responders! See Details

Out of Stock $199.00 Oversized Item Fee

Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Get Maximum Performance and Protection
      • Creates High Ground Clearance
      • 3.25” O.D. x 0.375”Wall Axle Tube
      • Pre-Installed Axle Seals
      • Heavy-Duty Housing
      • Smooth Radius Bottom Design
      • 1/4”-Thick CNC Laser-Cut Axle Brackets
      • Pre-Drilled Holes
      • Oversized Front Pinion Bearing Handle
      • Direct Bolt-On Upgrade
      • 1-Year/Unlimited Mileage Warranty
      • Fits 1997-2006 Jeep Wrangler TJ Models

      Description

      Get Maximum Performance and Protection. The Teraflex Rear Full Float CRD60 Axle w/ Pro LCG Truss is engineered to provide maximum protection and higher ground clearance that won't be negatively affected by pinion angle adjustments. By using the highest-quality materials and construction and with the innovative design of the full-front axle, you will be able to traverse challenging terrain with no worries.

      Heavy-Duty Features. From the heavy-duty housing with pre-installed axle seals and upper control arm bushings, to the 8x 6.5" bolt pattern, 3.25” O.D. x 0.375” wall axle tube and bearing caps and axle tubes, this rear axle is the ultimate choice for replacing a broken, bent or damaged rear axle. The smooth radius bottom is designed so that your Jeep can climb over large rocks or boulders with no worries.

      Direct Bolt-On Upgrade. Designed to be a direct bolt-on upgrade, this Teraflex Rear Full Float CRD60 Axle w/ Pro LCG Truss requires an advanced or professional mechanical level skill set. The average time for installation is 4-6 hours. Modification to the driveshaft will be required.

      1-Year/Unlimited Mileage Warranty. TeraFlex guarantees their products to the original purchaser they will be free of defects in workmanship and materials for the entirety of ownership to the purchaser that owns the vehicle where the product was originally installed. Limitations apply — please refer to the original manufacturer's warranty for additional details.

      Application. This Teraflex Rear Full Float CRD60 Axle w/ Pro LCG Truss is specifically designed to fit 1997-2006 Jeep Wrangler TJ models.

      Fitment:

      Details

      Teraflex 3980000

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) 1350 Series Pinion Yoke
      • Big Rotor Kit with 13.5” Rotors
      • 35-Spline Inner & Outer Axle Shafts
      5.0

      Customer Reviews (5)

        Brand Image

        Reviews of Teraflex Drivetrain products have an average rating of 4.8 out of 5

          Questions & Answers

          10 More Questions

          Will It Fit My Wrangler

          • TJ Rubicon 2 Door - 03, 04, 05, 06
          • TJ Rubicon Unlimited 2 Door - 05, 06
          • TJ Wrangler 2 Door - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06
          • TJ Wrangler Unlimited 2 Door - 04, 05, 06
