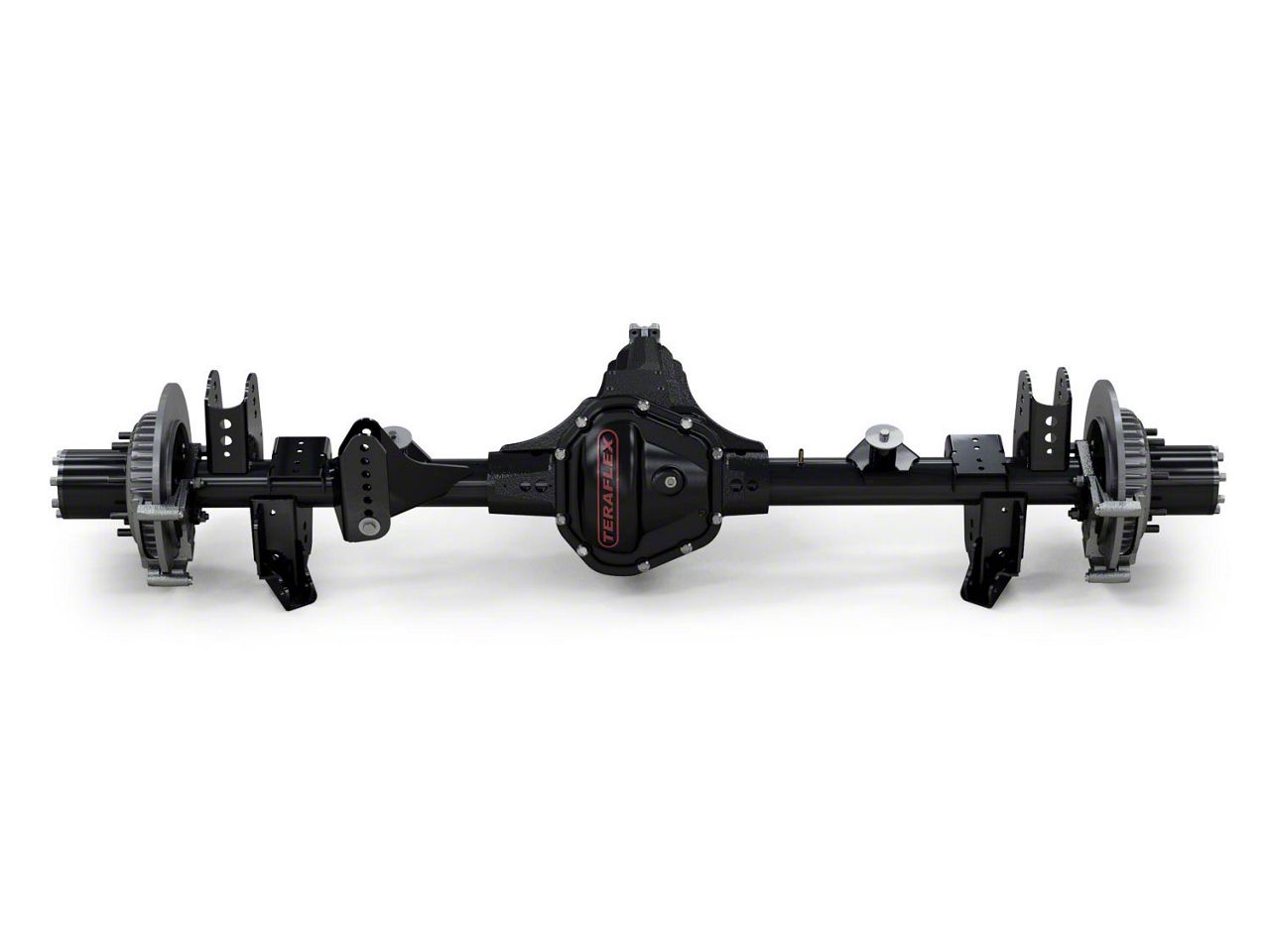

Teraflex CRD60 HD Wide Rear Axle with Full-Float for 4 to 6-Inch Lift (07-18 Jeep Wrangler JK)Find parts that fit my vehicle
Item J117748
$0.00
Our Price
$5,412.99 each
Out of Stock
$199.00 Oversized Item Fee
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Wide Rear CRD60 Full Axle Housing
- Upgrade Your Wrangler JK's Rear Axle
- Heavy-Duty Housing
- Accommodates 0-6 Inch Lift Kits
- 8x6.5 Inch Wheel Bolt Pattern
- Incredibly Top-Notch Build Quality
- Driveshaft Modification Required for Install
- Limited Lifetime Warranty
- Fits All 2007-2018 Jeep Wrangler JK Models
| Brand | Teraflex |
| Type | Dana 60 |
| Placement | Rear |
Description
Bring the New Axle. Making a custom suspension for your 2007-2018 Jeep Wrangler JK is great. But when you upgrade that, you’re going to need to upgrade your axle to withstand the rigors of the trail. So get the best out there and go with the Teraflex Rear Full Float CRD60 Axle – 70 inches Wide.
Super-Durable Construction. This axle is crafted from incredibly top-quality components and is built to handle heavy-duty applications on the trail. It has durable axle tubes, heavy-duty bracketry, and pre-installed inner seals and control arm bushings. This CRD60 design is designed to accommodate lift kits up to 6 inches, allowing for proper pinion angles no matter what the lift you might use.
Super 60 Ratio. This axle works with all Super 60 gear ratios, the ratio for big time trail madness. It leaves stock axles in the dust, and allows for wheels in a 8x6.5 inch bolt pattern. You’re going to be able to put the nastiest obstacles in the rear view mirror as you roll over them.
Bolt-On Installation. This axle is a bolt-on replacement for other JK axles, but please recognize that replacing your vehicle’s rear axle is no simple task. You will need hand tools, advanced mechanical expertise, and a car lift or jack stands to do this correctly. Also highly recommended is a way to move out the old axle and move the new one into position, be it a few friends or a crane. Install time should take around four and a half hours.
Limited Lifetime Warranty. Teraflex ensures their products will be free of material and manufacturer's defects for as long as you have them installed on your Wrangler JK and keep them properly maintained. Restrictions apply, see full warranty for more details.
Application. This Teraflex Rear Full Float CRD60 Axle – 70 inch Wide is designed to fit all 2007-2018 Jeep Wrangler JK models. Please ensure correct model before purchase.
Fitment:
- 2007 Jeep Wrangler
- 2008 Jeep Wrangler
- 2009 Jeep Wrangler
- 2010 Jeep Wrangler
- 2011 Jeep Wrangler
- 2012 Jeep Wrangler
- 2013 Jeep Wrangler
- 2014 Jeep Wrangler
- 2015 Jeep Wrangler
- 2016 Jeep Wrangler
- 2017 Jeep Wrangler
- 2018 Jeep Wrangler
Teraflex 34700004
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Axle
- (1) 1350 Series Pinion Yoke
- (2) 35-Spline Inner & Outer Axle Shafts
- (1) Big Rotor Kit with 13.50-Inch Rotors
