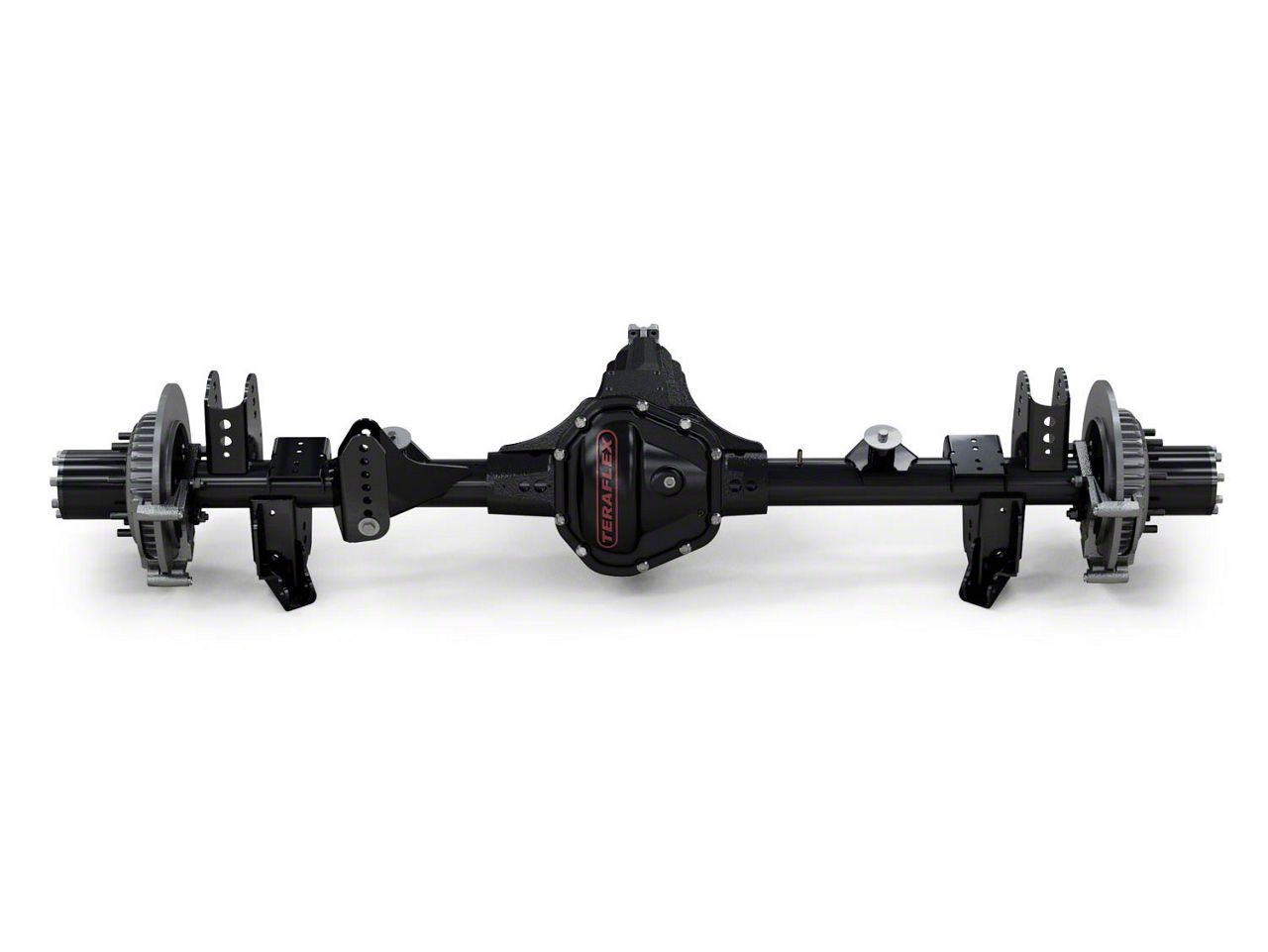

Teraflex CRD60 HD Rear Axle with Full-Float for 4 to 6-Inch Lift (07-18 Jeep Wrangler JK)Find parts that fit my vehicle
Item J117747
$0.00
5 Reviews
Our Price
$5,166.99 each
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Rear Full Float CRD60 Axle Housing
- Replace Your Wrangler JK’s Rear Axle
- Constant Radius Design for Improved Ground Clearance
- 8 x 6.5 Inch Wheel Bolt Pattern
- Superior Construction Quality
- Built for Lifted Suspensions
- Requires Driveshaft Modification for Installation
- Limited Lifetime Warranty
- Fits All 2007-2018 Jeep Wrangler JK Models
| Brand | Teraflex |
| Type | Dana 60 |
| Placement | Rear |
Description
The New Axle. Your 2007-2018 Jeep Wrangler JK is built to make the trail tamable no matter what you do. So start from the foundations with this Teraflex Rear Full Float CRD60 Axle. This peerless axle will ensure you’re able to deliver the power of your Wrangler to the rear wheels, and equip beefy wheels to crawl over all the rocks.
Heavy-Duty Construction. This axle is crafted from high-quality components; including heavy-duty axle tubes, superior oil passages, and pre-installed inner seals and upper control arm bushings. The wheel bolt pattern is a huge 8 x 6.5 inch pattern, allowing you to mount some of the best tires for any application. It’s really an all-in-one axle package.
For Super 60s. This axle and its housing are built to accommodate all Super 60 gear ratios. It’s the ratio that you need when you’re going to go through some extremely heavy-duty conditions, like giving it your all on the trail. In addition, the CRD60 axle configuration provides a correct pinion angle for lift kits up to six inches high, making it perfect for the trail.
Installation. This axle requires hand tools, a car lift or jack stands, and advanced mechanical knowledge to install these correctly. Please allow about four and a half hours for installation. You will need to modify the driveshaft for installation, but other than that, this axle assembly is a bolt-on installation.
Limited Lifetime Warranty. Teraflex ensures their products will be free of material and manufacturer's defects for as long as you have them installed on your Wrangler JK and keep them properly maintained. Restrictions apply, see full warranty for more details.
Application. This Teraflex Rear Full Float CRD60 Axle is designed to fit all 2007-2018 Jeep Wrangler JK models. Please ensure correct model before purchase.
Fitment:
- 2007 Jeep Wrangler
- 2008 Jeep Wrangler
- 2009 Jeep Wrangler
- 2010 Jeep Wrangler
- 2011 Jeep Wrangler
- 2012 Jeep Wrangler
- 2013 Jeep Wrangler
- 2014 Jeep Wrangler
- 2015 Jeep Wrangler
- 2016 Jeep Wrangler
- 2017 Jeep Wrangler
- 2018 Jeep Wrangler
Teraflex 3470000
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Axle
- (1) 1350 Series Pinion Yoke
- (2) 35-Spline Inner & Outer Axle Shafts
- (1) Big Rotor Kit w/ 13.5” Rotors
5.0
Customer Reviews (5)
Reviews of Teraflex Drivetrain products have an average rating of 4.8 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Wrangler
- JK Rubicon 2 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
- JK Rubicon 4 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
- JK Wrangler 2 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
- JK Wrangler 4 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
