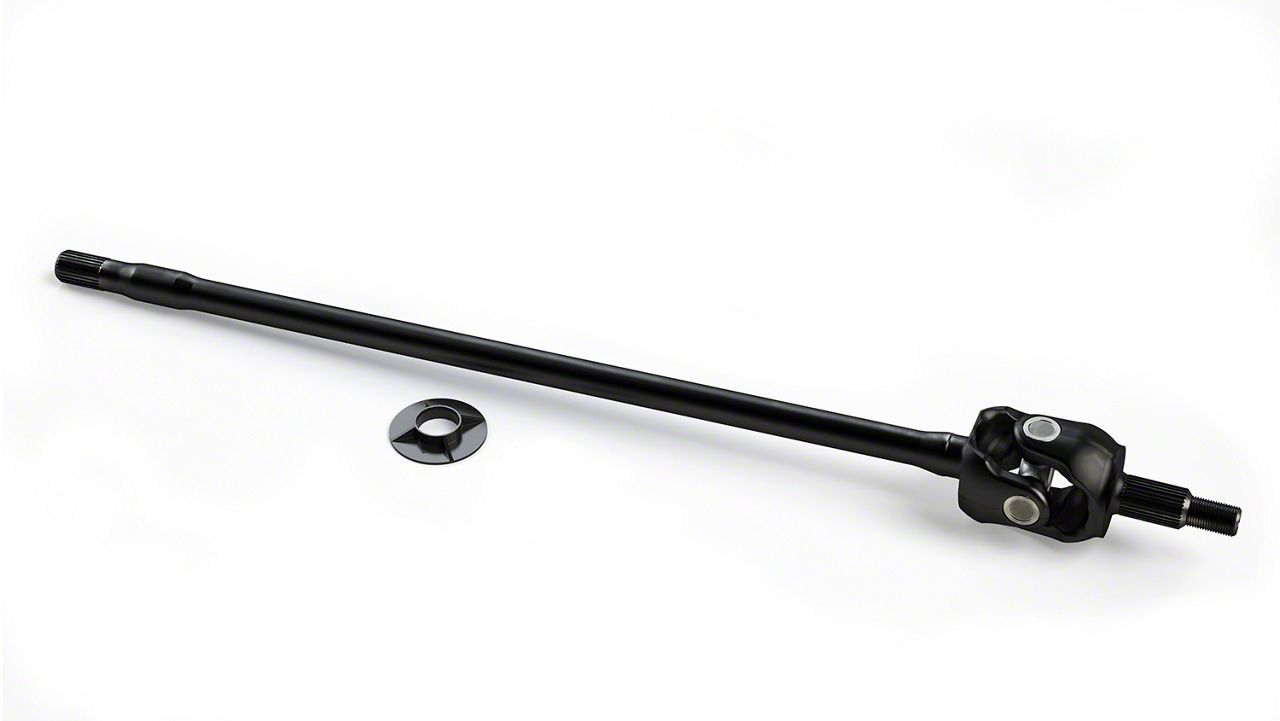

Teraflex Tera30 Axle Shaft Kit with Rubicon U-Joint; Passenger Front Inner; 27-Spline (07-18 Jeep Wrangler JK, Excluding Rubicon)Find parts that fit my vehicle
Item J140836
$0.00
Our Price
$387.99 each
Out of Stock
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Front Inner Passenger Side Axle Shaft Kit
- Tera30 Front Axle
- Dual-heat Treated 4340 Chromoly Steel Construction
- Rolled Splines
- Right Side Inner: 27-Spline, 34.5-inch
- Outer Stub Shaft: 32-Spline
- Rubicon U-joint - Spicer 5-7166X
- Fits 2007-2018 Jeep Wrangler JK Models, Excluding Rubicon
| Brand | Teraflex |
| Type | Dana 30 |
| Placement | Front |
Description
Stronger and Beefier. Your JK's stock axle shafts are better suited for driving on paved roads as they are prone to bend or snap when off-roading with larger diameter tires installed. It is for this reason that Teraflex offers their Tera30 Axle Shaft Kit to handle the added load of big knobby all-terrain tires. Stronger than stock, this Axle features a beefed up, heavy duty Rubicon U-Joint to manage the extra abuse associated with serious off-roading.
4340 Chromoly Construction. This Teraflex Tera30 Axle Shaft is constructed from high-strength 4340 chromoly steel that has been dual-heat treated and profiled for optimal strength. Other features include rolled splines and compatibility with the larger Dana 1350-series U-joint.
Installation. With an installation time of about 5 hours it is highly recommend to replace the inner seal when removing an axle shaft. As it makes sense to change both sides and both seals at the same time. This install time includes installing both the driver and passenger side axle shafts, inner seals, removal of differential, adding oil, and axle reassembly.
Application. This Teraflex Tera30 Axle Shaft Kit with Rubicon U-Joint; Passenger Front Inner; 27-Spline is designed to fit 2007-2018 Jeep Wrangler JK models, excluding Rubicon.
4340 Chromoly Construction. This Teraflex Tera30 Axle Shaft is constructed from high-strength 4340 chromoly steel that has been dual-heat treated and profiled for optimal strength. Other features include rolled splines and compatibility with the larger Dana 1350-series U-joint.
Installation. With an installation time of about 5 hours it is highly recommend to replace the inner seal when removing an axle shaft. As it makes sense to change both sides and both seals at the same time. This install time includes installing both the driver and passenger side axle shafts, inner seals, removal of differential, adding oil, and axle reassembly.
Application. This Teraflex Tera30 Axle Shaft Kit with Rubicon U-Joint; Passenger Front Inner; 27-Spline is designed to fit 2007-2018 Jeep Wrangler JK models, excluding Rubicon.
Fitment:
- 2007 Jeep Wrangler
- 2008 Jeep Wrangler
- 2009 Jeep Wrangler
- 2010 Jeep Wrangler
- 2011 Jeep Wrangler
- 2012 Jeep Wrangler
- 2013 Jeep Wrangler
- 2014 Jeep Wrangler
- 2015 Jeep Wrangler
- 2016 Jeep Wrangler
- 2017 Jeep Wrangler
- 2018 Jeep Wrangler
Teraflex 3333134
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Front Inner Passenger Side Axle Shaft
