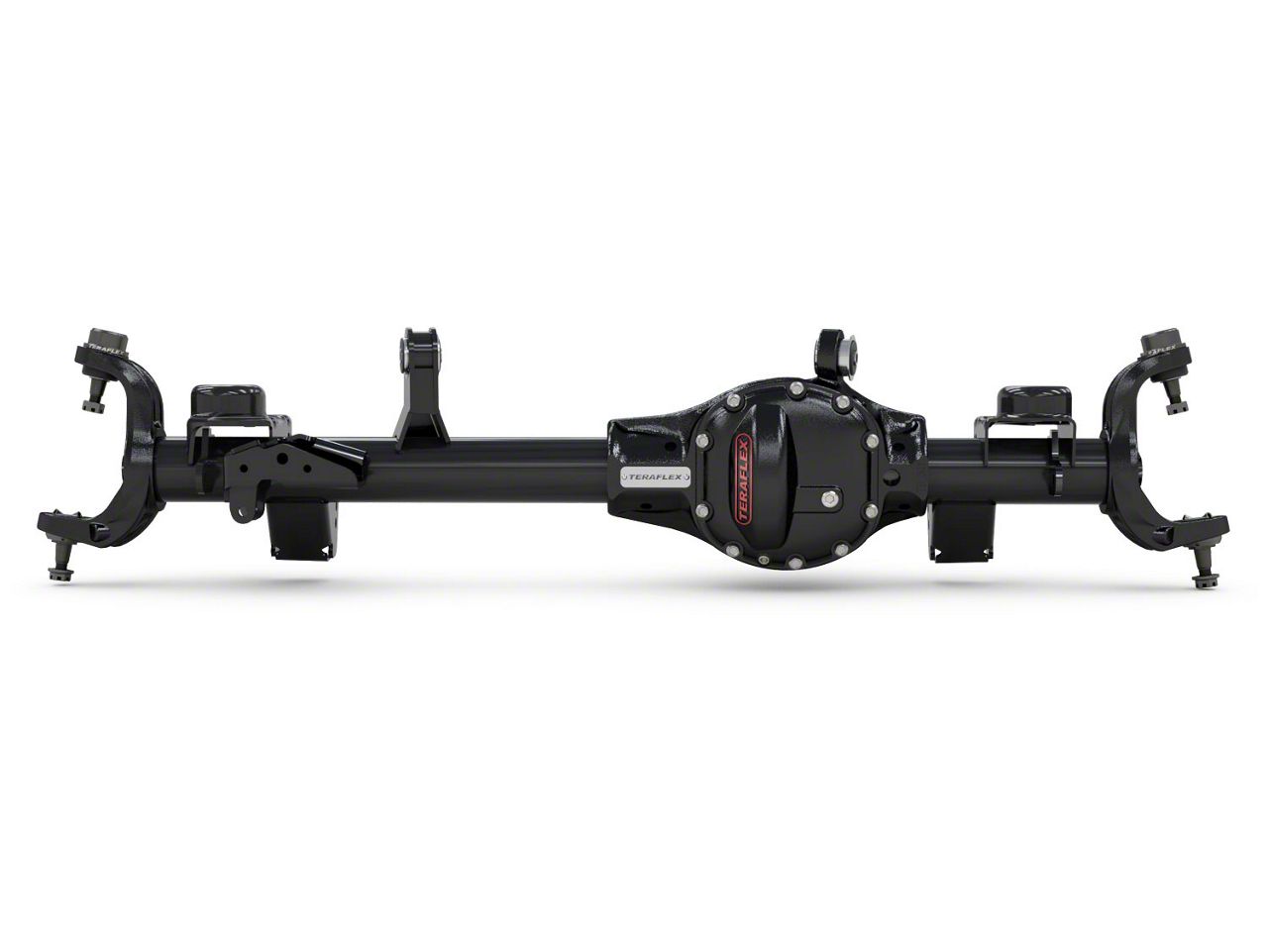

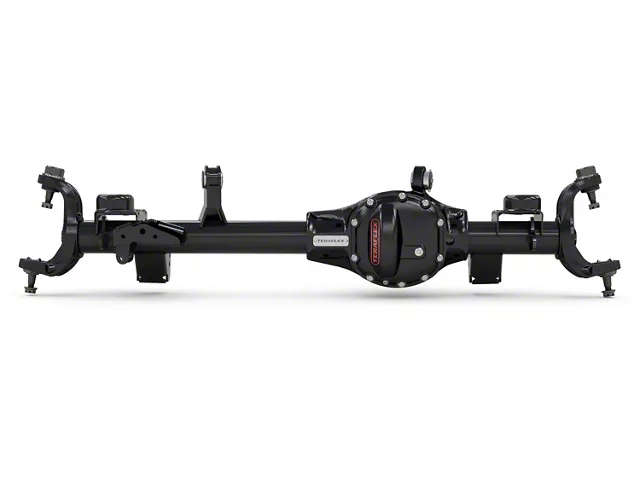

Teraflex Tera30 HD Front Axle Housing with ARB Locker and 4.56 Gears for 0 to 3-Inch Lift (07-18 Jeep Wrangler JK, Excluding Rubicon)Find parts that fit my vehicle
Item J117633
$0.00
1 Reviews
Our Price
$4,789.99 each
Out of Stock
$199.00 Oversized Item Fee
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 3.25 O.D. x 0.25 Inch Wall Axle Tube
- Forged HD Inner Knuckles
- Pre-Installed Inner Axle Seals
- Ductile Cast Iron Housing
- Asymmetric Housing Design
- TeraFlex HD Ball Joints
- HD Ductile Iron Differential Cover
- 1/4-Inch-Thick, CNC Laser-Cut Axle Brackets
- Made in the USA
- One-Year/Unlimited Mileage Warranty
- Fits 2007-2018 Jeep Wrangler JK, Excluding Rubicon Models
| Brand | Teraflex |
| Type | Dana 30 |
| Placement | Front |
Description
Beef Up Your Front Axle. Replace your broken, damaged or bent front axles in your Jeep Wrangler JK (excluding Rubion) with a TeraFlex Front Tera30 Axle with 4.56 Gears for 0-3 inch Lift. This 100-percent kit contains all of the required components and hardware needed to beef up all areas of weakness for your front axle. At this 0-3-inch height, your axle is a direct bolt-on upgrade. Aftermarket control arms may be used and are also recommended at 3 inches or stock control arms may be reused.
High-Quality Construction. The asymmetric housing design to the ductile cast iron housing are proudly made in the USA and are forged from the highest-quality materials. The axle tubes and the heavy-duty replacement axle housings include all of the required hardware, such as forged inner knuckles, upper control arm bushings, Spicer bearings, pre-installed inner seals, the factory yoke and TeraFlex HD ball joints.
Specifications. The 3.25 O.D. x 0.25 inch wall axle tube adds additional strength and will resist torsion and bending with a reduced weight increase. The Forged HD inner knuckle delivers increased lower and upper strength, the ductile cast iron housing generates increased rib gussets and is secured with 1/4-inch-thick CNC laser-cut axle brackets. The design of the radius bottom will help you to take on obstacles and rocks with ease.
One-Year/Unlimited Mileage Warranty. TeraFlex Inc. offers a guarantee to the original purchaser that their products will be free of defects in workmanship and materials for a period of 1 year from the original date of purchase.
Application. This TeraFlex Front Tera30 Axle with 4.56 Gears for 0-3 inch Lift is designed to fit 2007-2018 Jeep Wrangler JK, excluding Rubicon models.
Fitment:
- 2007 Jeep Wrangler
- 2008 Jeep Wrangler
- 2009 Jeep Wrangler
- 2010 Jeep Wrangler
- 2011 Jeep Wrangler
- 2012 Jeep Wrangler
- 2013 Jeep Wrangler
- 2014 Jeep Wrangler
- 2015 Jeep Wrangler
- 2016 Jeep Wrangler
- 2017 Jeep Wrangler
- 2018 Jeep Wrangler
Teraflex 3503456
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- ARB Air Locker
- Spicer Bearings & Install Kits
- TeraFlex HD Ball Joints
- Factory Yoke
- Spicer Ring & Pinion – 4.56
5.0
Customer Reviews (1)
Reviews of Teraflex Drivetrain products have an average rating of 4.8 out of 5
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Wrangler
- JK Wrangler 2 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
- JK Wrangler 4 Door - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18
0-3 Inches: At this height, your axle is a direct bolt-on upgrade! Aftermarket control arms may be used and are also recommended at 3 inches or the stock control arms may be reused.
