How to Install Synergy Heavy Duty Fixed Front Lower Control Arms on your 2007-2014 Wrangler JK

GENERAL NOTES:

• These instructions are also available on our website; www.synergymfg.com.
Check the website before you begin for any updated instructions and additional
photos for your reference.

• The installation of these control arms will return a 3.0” lifted vehicle back to a
stock caster of 5.0 deg

• With the combination of PPM-8053 caster can be correctly adjusted on all lifts
from 0-6.”

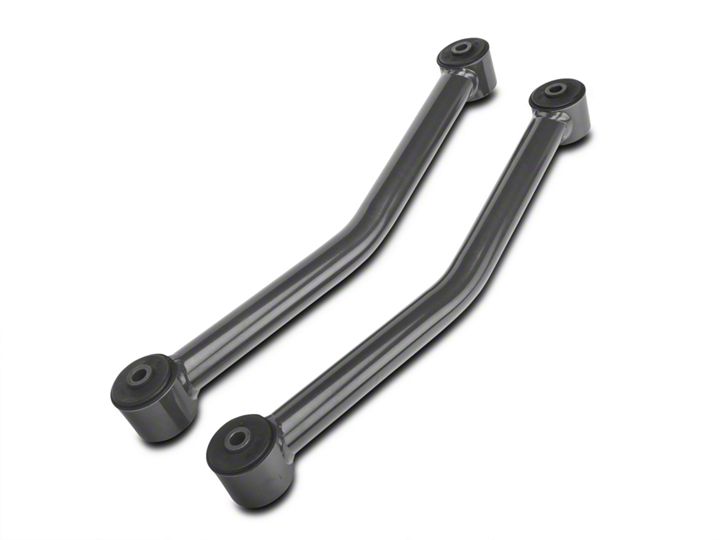

1. The control arms are the same left and right.

2. Arms are designed for additional ground and tire clearance and should be installed as
shown in the picture below.

3. Remove the existing lower control arms. If you are just replacing the lower control
arms, they can be replaced one at a time with the vehicle sitting on level ground,
without removing the tires & wheels or any other suspension part.

4. Reuse the factory mounting bolts. We recommend installing the axle end control arm
bolts from the inside so there is minimal rock damage to the exposed thread on the
end of the bolt.

5. Tighten the factory control arm bolts to 125 ft-lbs, wait until the vehicle is at ride
height before tightening the rubber bushing end.
