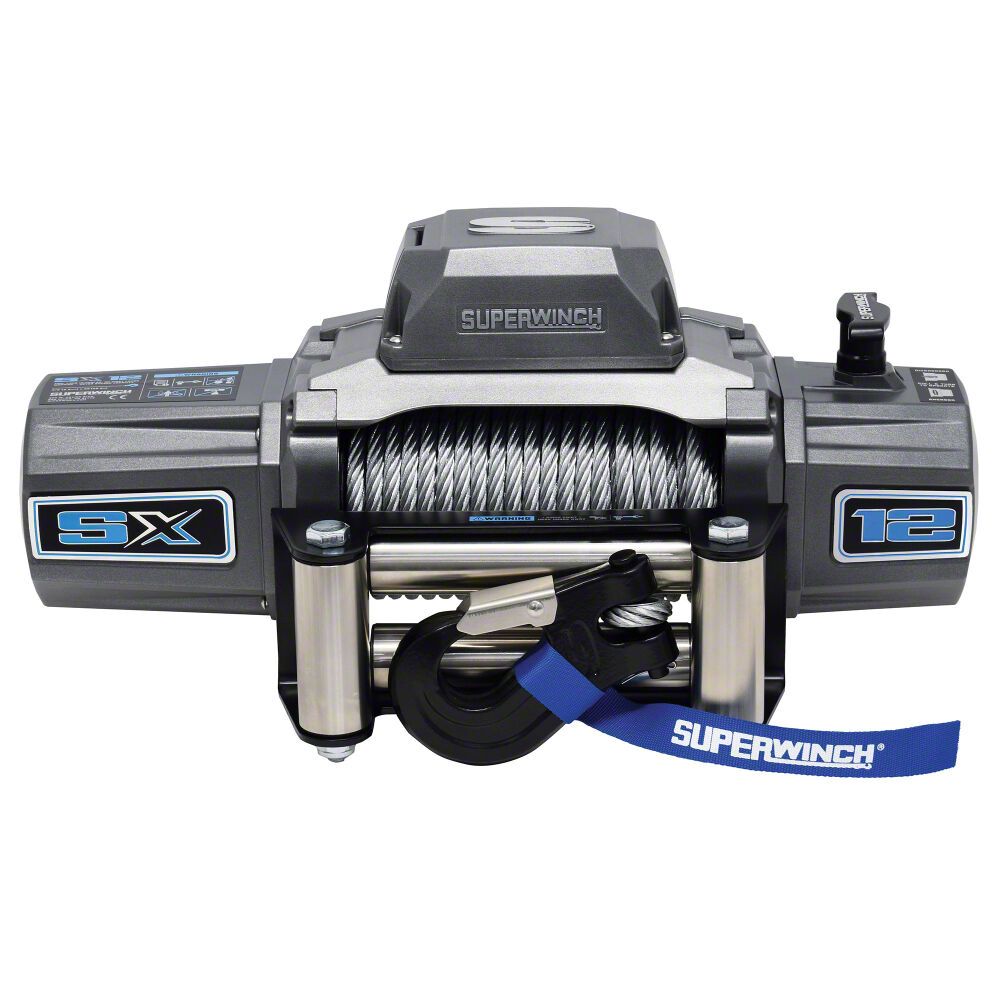

Superwinch 12,000 lb. SX12S Winch (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

Item JG28877
Gladiator Sales Tech

Verify parts fit & get product recommendations

M-F 8:30A-11P, Sat-Sun 8:30A-9P

$0.00
Want $10? Write one of the first 5 reviews 4.7 Superwinch Accessories product ratings
Our Price

$741.39 each

In Stock

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Reliable 12,000 lb. SX12S Winch
      • Built-In Pull-and-Turn Clutch Handle
      • Utilizes Rechargeable Lithium-Ion Battery
      • Relocatable Die-Cast Aluminum Control Box
      • Full 100% Load-Holding Automatic Mechanical Brake Built
      • Precise 3-Stage Planetary Gearing Design (with 231:1 Ratio)
      • Mounting Bolt Pattern: 10-Inch x 4.50-Inch (254mm x 114.3mm)
      • Includes 12-Foot Hand-Held Wired Remote (with Flashlight)
      • Line Speed: 68 Amps Motor Draw / 23.4 FPM (7.13 MPM)
      • Incorporated 4-Way Stainless Steel Roller Fairlead
      • Robust Clevis Pinned Latched Hook Integration
      • Rated Single Line Pull (Lbs): 12000 Pounds
      • Steel Wire Rope Material Construction
      • Robust Steel Material Construction
      • Integrated 6.0 HP Sealed Motor
      • Patented Drum Light Feature
      • Voltage: 12V DC
      • Built-In Clevis Winch Hook
      • Graphite Powder-Coated Finish
      • IP68 Waterproof Rated Composition
      • Engineered for Universal Applications

      Description

      Sturdy. Elevate your off-road recovery capabilities with the Superwinch 12,000 lb. SX12S Winch, is a powerhouse designed for universal applications. This winch boasts a robust 6.0 HP sealed motor and a sturdy steel wire rope, ensuring reliability and strength for the toughest pulls. With a rated single-line pull capacity of 12,000 pounds, it's ready to tackle any challenge.

      Functional. The winch features a precise 3-stage planetary gearing design with a 231:1 ratio, providing efficient and controlled winching. The built-in pull-and-turn clutch handle, along with a relocatable die-cast aluminum control box, offers versatility and ease of use. Enjoy the convenience of a 12-foot hand-held wired remote with a built-in flashlight for nighttime operations.

      Waterproof. The winch is equipped with a full 100% load-holding automatic mechanical brake, ensuring safety during use. Its IP68 waterproof-rated composition and graphite powder-coated finish guarantee durability in all weather conditions. The Superwinch SX12S is the ultimate solution for adventurers seeking reliability, power, and performance.

      Installation. Putting this Superwinch 12,000 lb. SX12S Winch on your ride is easy and requires xxx drilling.

      Warranty. There is a Limited Lifetime Mechanical and 7-Year Limited Electrical Warranty on this product.

      Application. This Superwinch 12,000 lb. SX12S Winch fits universal applications.

      Superwinch 1712200

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Winch
      4.7

      Reviews of Superwinch Accessories Products (35)

      Brand Image

      Reviews of Superwinch Accessories products have an average rating of 4.7 out of 5

      Jun 23, 2024

      Review shared from Superwinch 10,000 lb. SX 10000SR Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

      5
      2021 Willys - merideus35

      Great Winch Easy Install

      Install is very straight forward. My only compliant would be that all of the wiring is done on the winch when you unbox. Except the ground. I didn't realize this until I mounted the winch to the bumper. Not sure why this isn't wired as well.

      Mar 10, 2024

      Review shared from Superwinch 12,000 lb. SX12SR Winch with Synthetic Rope and Wireless Remote (Universal; Some Adaptation May Be Required)

      5
      2023 Mojave - VictorTango

      Rough, Sturdy, & Good Looking

      Absolutely no complaints, and looks great on the Gladiator!

      Dec 24, 2023

      Review shared from Superwinch 10,000 lb. SX 10000SR Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

      4
      2022 Rubicon - Mattp22

      Nice

      Great winch for the price. It is a tight fit if you have the rugged ridge HD bumper with a bull bar. Easy install.

      Dec 5, 2022

      Review shared from Superwinch Winch Rope Dampener

      5
      2021 Rubicon - navy1

      Cant beat the price.

      Dont risk a rope snapping and doing lots of damage. This is a must have

      Oct 25, 2022

      Review shared from Superwinch 10,000 lb. SX 10000SR Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

      4
      2021 Rubicon - DMannys

      Well Built

      I like the quality of the build and the finish. The remote and lights are a nice addition.

      Mar 3, 2025

      Review shared from Superwinch 10,000 lb. SX 10000SR Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

      5
      2024 Wrangler - HM2Doc

      Superwinch

      Easy order process and fast shipping. Have not had a chance to use the winch at this time. Look and feel of product are good, we did release the clutch and pull out the rope, used remote to retract the rope. That part worked well, was easy to do.

      Dec 24, 2024

      Review shared from Superwinch 12,000 lb. SX12SR Winch with Synthetic Rope and Wireless Remote (Universal; Some Adaptation May Be Required)

      5
      2023 Rubicon 4xe - 4XEBumper

      4xe Superwinch

      This winch is perfect for the 4xe due to color and strength. Also quality is awesome. Used with venator bumper. Expect a small drop on the front end, so spacer 1 inch or 3/4 needed for nice level. I have the mopar 2 inch lift and needed front end spacer for leveling

      Oct 14, 2024

      Review shared from Superwinch 12,000 lb. SX12SR Winch with Synthetic Rope and Wireless Remote (Universal; Some Adaptation May Be Required)

      5
      Chris789

      Super Winch

      Got this to replace a Badlands Apex 12000 The Apex is a great winch but this one is even better. Most importantly it is very smooth, very strong and the line pulls out in free spool almost effortlessly. Excellent product

      Sep 12, 2024

      Review shared from Superwinch Replacement Talon 9.5/12.5/18 Series Winch Roller Fairlead

      5
      2020 Wrangler - MonicaS

      Super winch

      Great product! Came quickly and looks great on my bumper In

      Mar 2, 2024

      Review shared from Superwinch 10,000 lb. SX 10000 Winch with Steel Cable (Universal; Some Adaptation May Be Required)

      5
      2021 Rubicon - WayneB

      same project as bumper etc.

      Was instlalled same time other parts installed, did not receive Flash light with it as it was supposed to be included. Will contact them with chat now
