Find 3 Inch to 5 Inch Lift Kits for your Tacoma
SuperLift 3-Inch King Edition Suspension Lift Kit (05-23 Tacoma, Excluding TRD Pro)Find parts that fit my vehicle
Item TT11258
$4,249.99
48 Reviews
On Sale
-15% $4,249.99 kit Was $4,999.99
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Front Lift of 3 Inches, and Rear Lift of 1.50 Inches
- Levels Ride Height Front to Rear
- Boosts Clearance Enhancing Off-Road Capabilities
- Front King Reservoir Coilover Shocks
- Rear King Reservoir Shocks
- High-Strength Fabricated Steel Front Upper Control Arms
- Heavy-Grade Cast Alloy Rear Lift Blocks
- Resilient Steel Differential Spacers (for 4WD Models)
- Accommodates up to 33-Inch Wide Tires
- Straightforward Installation
- Limited Lifetime Warranty
- Fits 2005-2023 Toyota Tacoma Models, Excludes TRD Pro
| Brand | SuperLift |
| Lift Height | 3.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 33 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Exceptional Off-Road Handling and Comfort. The SuperLift 3-Inch King Edition Suspension Lift Kit is the perfect suspension lift capable of providing excellent off-road performance and handling while maintaining a comfortable ride. This is achieved by a full set of high-performance King shocks that are designed to maximize handling and feel while also providing near factory levels of ride comfort. Moreover, this lift kit provides 3 inches of front, and 1.50 inches of rear lift to level-off your truck while also offering enough clearance to run 33-inch wide tires.
High-Performance Front King Reservoir Coilovers. This lift kit includes a pair of high-performance King coilover shocks. These coilovers utilize pressurized nitrogen gas in a reservoir design ensuring superior damping performance and a more accurate feel for the road. Moreover, these coilovers use heavy-duty springs and are powder-coated in blue for corrosion protection.
Superior Rear King Reservoir Shocks. This kit also includes a pair of King rear reservoir shock absorbers to replace your stock shocks. Just like the front coilovers, these high-performance rear shocks feature a high-pressure gas charged, reservoir design to provide maximum damping performance particularly over rough terrain. Additionally, these shocks feature a 2.50-inch wide aluminum shock body for efficient heat dissipation and reliable performance.
High-Strength Front Steel Upper Control Arms. Providing the 3 inches of front lift are a pair of upper control arms. These control arms are fabricated from high-grade steel and feature reinforcing gussets providing maximum durability. Moreover, these are properly angled to prevent binding, and feature high-quality Moog-branded ball joints, and high-quality bushings for consistent performance.
Heavy-Grade Rear Steel Lift Blocks. Providing the 1.50 inches of rear lift are two heavy-grade lift blocks. These lift blocks are precision-cast from high-grade alloy making them extremely resistant to compression forces. These lift blocks are also treated with a protective coating to prevent corrosion.
Resilient Differential Spacers. Ensuring your Tundra maintains correct rear geometry, this kit comes with resilient differential spacers. These spacers are designed to mount on your rear differential ensuring your truck maintains correct CV angles for a factory handling and ride quality.
Straightforward Install Procedure. The individual components of this SuperLift suspension lift kit installs onto preexisting locations on your truck without the need for major modifications. Some minor trimming of your fender liners may be needed with running certain 33-inch tire and wheel combinations.
Protected by a Limited Lifetime Warranty. This SuperLift King edition suspension lift kit is protected by a limited lifetime warranty against factory defects. Please visit the manufacturer’s website for more details.
Application. The SuperLift 3-Inch King Edition Suspension Lift Kit fits 2005-2023 Toyota Tacoma models, excluding TRD Pro.
Fitment:
- 2005 Toyota Tacoma
- 2006 Toyota Tacoma
- 2007 Toyota Tacoma
- 2008 Toyota Tacoma
- 2009 Toyota Tacoma
- 2010 Toyota Tacoma
- 2011 Toyota Tacoma
- 2012 Toyota Tacoma
- 2013 Toyota Tacoma
- 2014 Toyota Tacoma
- 2015 Toyota Tacoma
- 2016 Toyota Tacoma
- 2017 Toyota Tacoma
- 2018 Toyota Tacoma
- 2019 Toyota Tacoma
- 2020 Toyota Tacoma
- 2021 Toyota Tacoma
- 2022 Toyota Tacoma
- 2023 Toyota Tacoma
SuperLift K1012KG
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

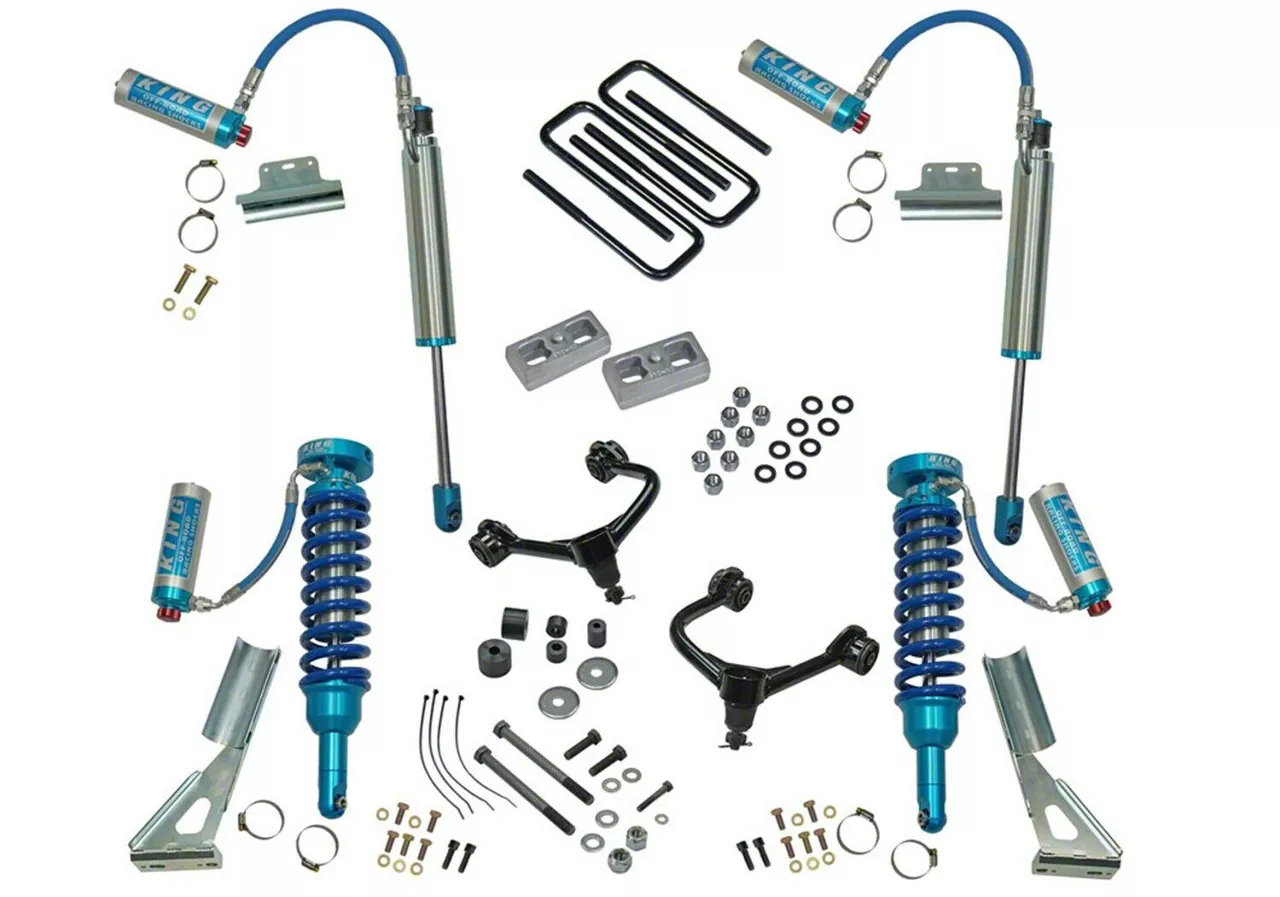

What's in the Box
- (2) Front King Reservoir Coilover Shocks, Driver and Passenger Side
- (2) Rear King Reservoir Shocks, Driver and Passenger Side
- (2) Upper Control Arms, , Driver and Passenger Side
- (2) Lift Blocks
- (2) Differential Spacers (for 4WD Models)
- (2) Skid Plate Spacers
- (2) Bump Stop Spacers
- (1) Brake Line Bracket Spacer
- (4) U-Bolts
- (4) Reservoir Mounts
- Mounting Hardware
4.4
Customer Reviews (48)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Tacoma
- 2.7L I4 - 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23
- 3.5L V6 - 16, 17, 18, 19, 20, 21, 22, 23
- 4.0L V6 - 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15
