Steer Smarts Yeti XD Dana UD60 No-Mod Bolt-In Steering Kit (18-24 Jeep Wrangler JL)
Item J190610
$912.60
On Sale
-10% $912.60 kit Was $1,014.00
Save with Open Box
From $608.40
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Description, Q&A, Specs & Installation
Description

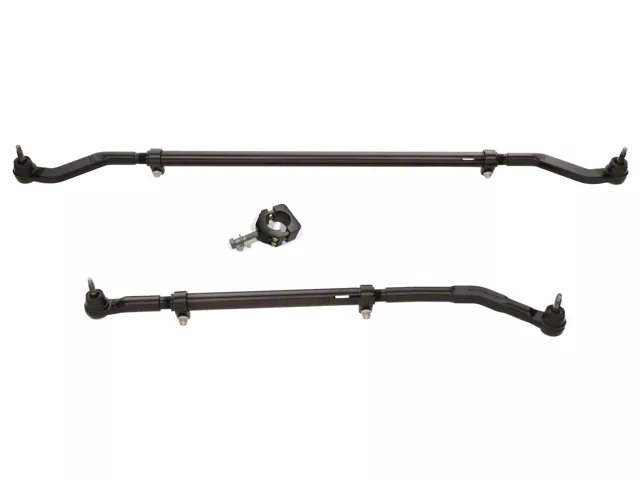

For those with a DANA UD60 axle who want a bolt-in, no modification required, heavy-duty steering system for the Jeep Wrangler JL / JT, we have the solution for you. This one-click kit includes our YETI XD™ Tie rod, Bottom Mount Drag Link, and 1-5/8" Aluminum Damper bracket. You can round out the front end trifecta by adding our YETI XD™ Front Adjustable track bar for the ultimate front end setup.
*Not compatible with stock JL, JT, or Super Duty Dana 60 axles | Only with upgraded aftermarket DANA Ultimate Dana 60 axle.
YETI XD TIE ROD + DRAG LINK ASSEMBLIES:
*Not compatible with stock JL, JT, or Super Duty Dana 60 axles | Only with upgraded aftermarket DANA Ultimate Dana 60 axle.
YETI XD TIE ROD + DRAG LINK ASSEMBLIES:
- Easy bolt-on installation.
- Engineered for proper clearance to other chassis components to eliminate interferences.
- MANUFACTURED IN THE USA
- 30mm 1-1/2 Ton ball joints are designed specifically for the JL / JT with a UD60 (68.5" wide).
- Cold-headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.
- Induction heat-treated ball studs provide ultimate fatigue strength and superior off-road durability.
- Steel on steel bearings provide exceptional ball joint wear resistance and robustness.
- High-quality seals ensure ball joints' life is long-lived. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.
- Fully greaseable.
- Powder coat over E-coat for a long lasting appearance under harsh conditions.
- External threads are e-coated for durability and long-term serviceability.
- Forged from medium carbon high hardenability steel and heat-treated for even greater buckling, impact, and fatigue strength.
- Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.
- Unique “Reverse Pin” technology on the passenger-side ends prevents our linkage from unwanted flopping/rocking. This technology is built into the socket, unlike the weak external supports on some competitor linkages.
ADJUSTER TUBES:
- Tie rod and drag link adjusters are manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.
- Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.
- Designed with right-hand and left-hand threads for quick and easy adjustment when installed on the vehicle.
- Internal threads and tube are also e-coated for long term serviceability.
YETI XD™ tie rod and drag link fit all left-hand drive JL Wrangler models 2018+ and JT Gladiator models 2018+ equipped with a UD60 (68.5" wide).
*Not compatible with the stock JL or JT front axle.
Fitment:
- 2018 Jeep Wrangler
- 2019 Jeep Wrangler
- 2020 Jeep Wrangler
- 2021 Jeep Wrangler
- 2022 Jeep Wrangler
- 2023 Jeep Wrangler
- 2024 Jeep Wrangler
Steer Smarts DANA-KIT-02-AA
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- Steering Kit
