The BantamX will save hours of wiring and installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories.
Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
Features:

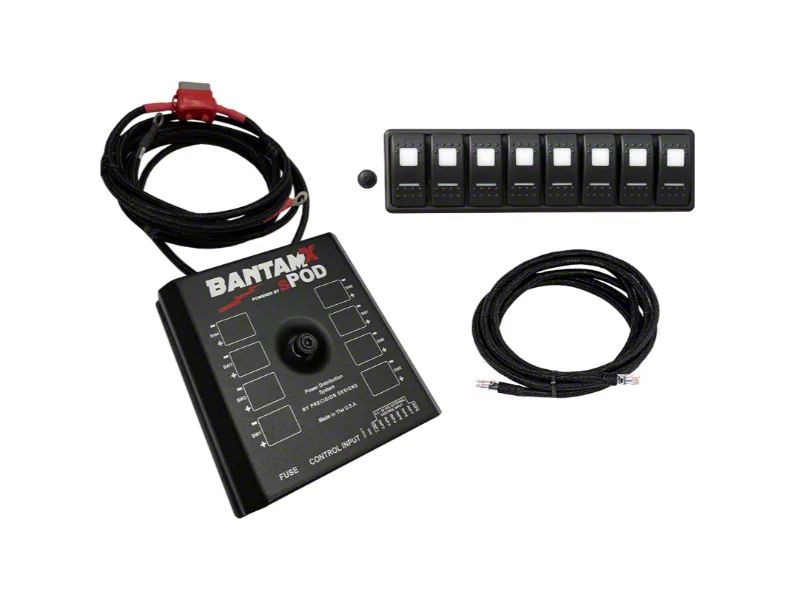

BantamX Modular w/ Red LED with 84 Inch battery cables
Fully programmable, digital controlled system
8 circuits rated at 30 amps at 12.5 VDC per circuit
16-position terminal block (easily attach accessories)
2 controller ports (RJ45) for Ethernet cables
Integrated low voltage cutoff (LVCO) battery protection w/ optional override
One ATM mini-style fuse for LVCO protection and reset
Failsafe self-healing fault protection system (from 1.5 to 30amps)
Current-sensing MOSFETs controlled by a microprocessor (no fuses and relays)
50amp auto-resetting circuit breaker
Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
Operates on 12VDC or 24VDC
8-position input terminal block for controlling outputs
Built-in Bluetooth capabilities for remote control
Protection against: overheating, over-current, shorts, reverse polarity and field collapse
Ignition control and safety lock-out for switches 1 and 2 (optional)
Up to 4 BantamX units can be daisy chained and controlled by one Touchscreen
On-demand wireless software updates/upgrades
