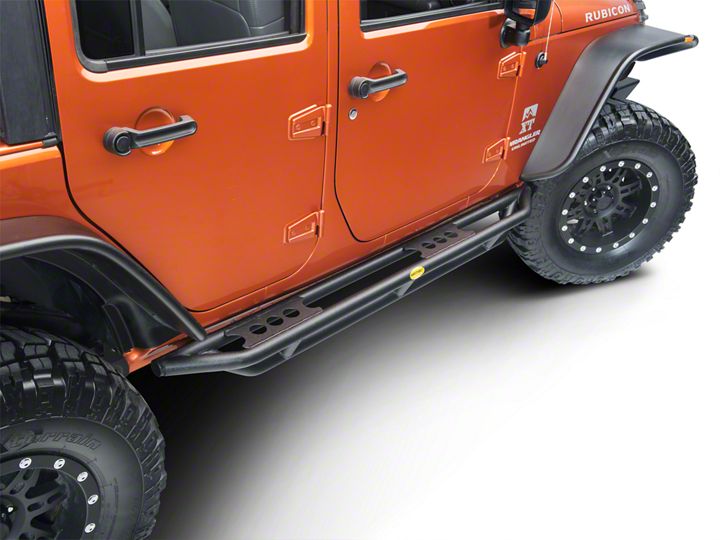

How to Install Smittybilt SRC Side Armor on your 2007-2014 Wrangler JK 4 Door

Inside the Box:

• Driver Side Bar
• Passenger Side Bar
• Instructions Packet ( A copy of instructions, 3 stickers, and a flyer)

Installation Instructions:

1. Organize Driver and Passenger side.

2. Identify front and rear body mounts, and remove the four nuts on each side of the vehicle.

3. The “U” Shaped bracket fits into the body mounts with the two bolts going through the slots on the bracket. You will want to have each side leveled to the proper height and someone else to assist with holding each side as you fasten it.

4. Install the nuts that were removed earlier but do not tighten until all of them have been replaced. Once complete, retighten and follow the same steps on the opposite side.

5. Installation complete!
