How to Install a Smittybilt Black Textured SRC Rocker Guards on your 2007-2014 Wrangler JK 4 Door
Shop Parts in this Guide
STEP 1: Identify the Driver and the passenger side. The shorter end goes towards the front. (Fig A)
STEP 2: Remove the two side nuts from the front and rear body mount area. (Fig B)
STEP 3: Install the guard on the vehicle by placing the cut-outs in the top of the brackets around the body mounts while lining up the two holes in the top of the brackets with the bolts you previously removed the nuts from. (Fig C)

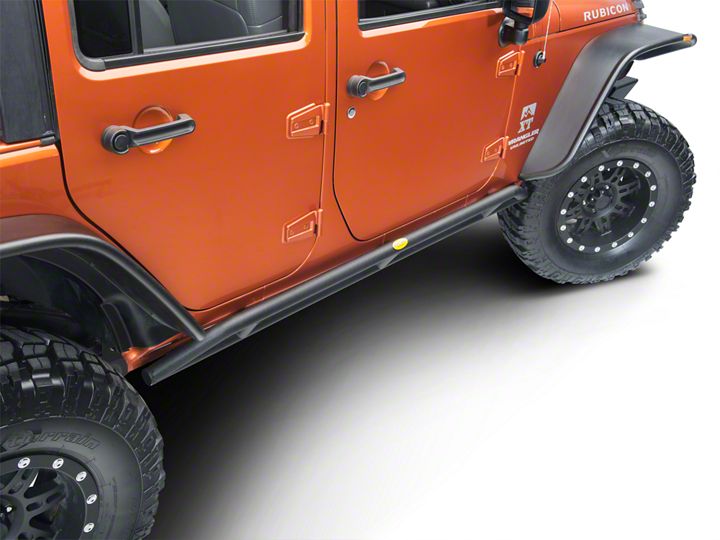

STEP 4: While having an assistant hold the bar in place install the nuts you previously removed back on to the studs you removed them from. Once all have been started you can tighten completely. (Fig D) Installation is now complete. Follow the same steps for the opposite side. (Fig E,F)
CARE AND MAINTENANCE
To protect your investment it is recommended to regularly wash and wax this part. Do not use any type of cleaners that contain abrasives that may damage the finish of your part.
