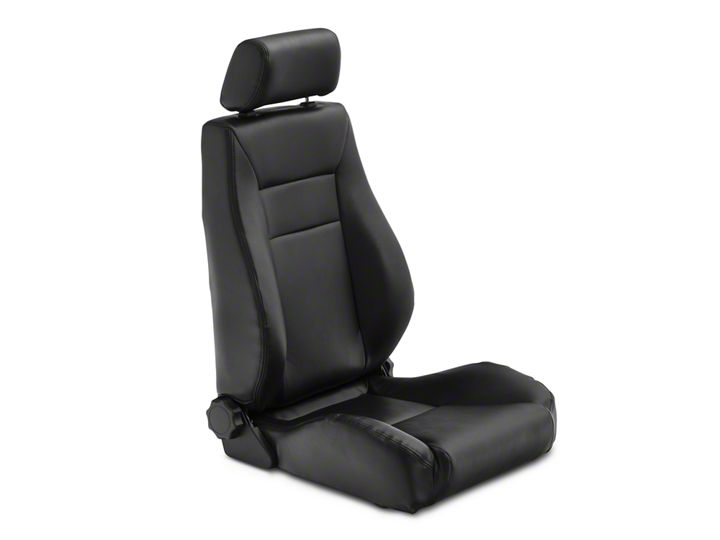

How to Install Smittybilt Seat - Front - Contour Sport Bucket w/ Recliner - Vinyl Black on your 87-18 Jeep Wrangler YJ, TJ, JK & JL

Tools Required
  • Basic Hand Tools Required
View PDF Guide
Extreme Terrain
Shop Parts in this Guide

Included Components

1 Seat

1 Plastic Cover RH

1 Plastic Cover LH

1 Recliner Knob


Replacement Seat Assembly

1. Firmly press plastic cover to the side of the metal seat recliner bracket for each side.

2. Place recliner knob over recliner shaft and press firmly. Repeat for other side.

3. Recheck to make sure covers and knobs are securely seated and attached before installing seats.

Replacement Seat Installation

4. Remove old seat from riser by removing 4 bolts.  Save these bolts as they will be reused later.


5. Remove sliders from old seats by removing 4 bolts.  Save these bolts as they will be reused later.


NOTE: To access the rear 2 bolts push slider arm down and move slider forward.


6. Place sliders onto new seats. Reuse spacers from  The old seat to align the slider.


7. Fasten slider to the new seat using the 4 bolts  saved from step 5


8. Carefully place slider back onto seat riser and  fasten with 4 bolts saved from step 4.


NOTE: All 1997-2002 Wranglers require Adapter 49900 Driver Side or 49901 Passenger Side.

NOTE: All 2003-2006 Wranglers require Adapter 49902 Driver Side or 49903 Passenger Side.
