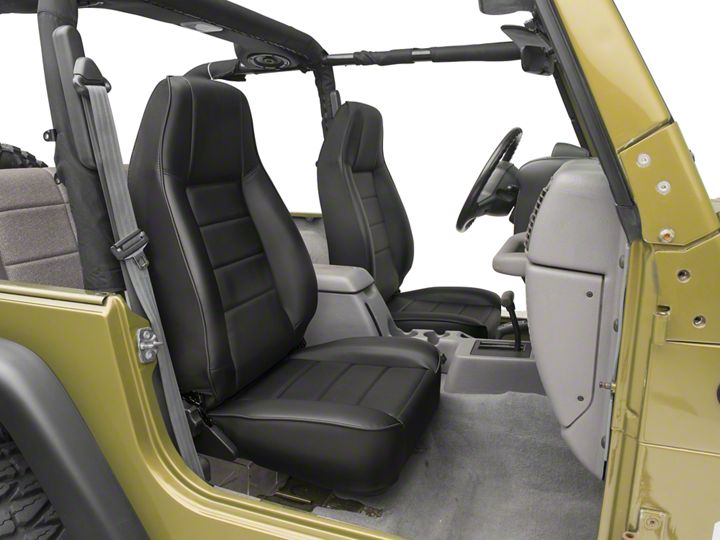

How to Install Smittybilt Factory Style Recliner, Black Denim on your 1987-2006 Wrangler

Tools Required
  • Basic Hand Tools Required
View PDF Guide
Extreme Terrain
Shop Parts in this Guide

Included components:
(1) Seat
(1) Plastic Cover (LH)
(1) Plastic Cover (RH)
(1) Recliner knob


Replacement Seat Assembly


1. Firmly press plastic cover to the side of the metal seat recliner bracket for each side.
2. Place recliner knob over recliner shaft and press firmly. Repeat for other side.
3. Recheck to make sure covers and knobs are securely seated and attached before installing seats.

Replacement Seat Installation

4. Remove old seat from riser by removing 4 bolts.  Save these bolts as they will be reused later.


5. Remove sliders from old seats by removing 4 bolts.
Save these bolts as they will be reused later.


NOTE: To access the rear 2 bolts push slider arm down and move slider forward.


6. Place sliders onto new seats. Reuse spacers from The old seat to align the slider.


7. Fasten slider to the new seat using the 4 bolts saved from step 5



8. Carefully place slider back onto seat riser and fasten with 4 bolts saved from step 4.
