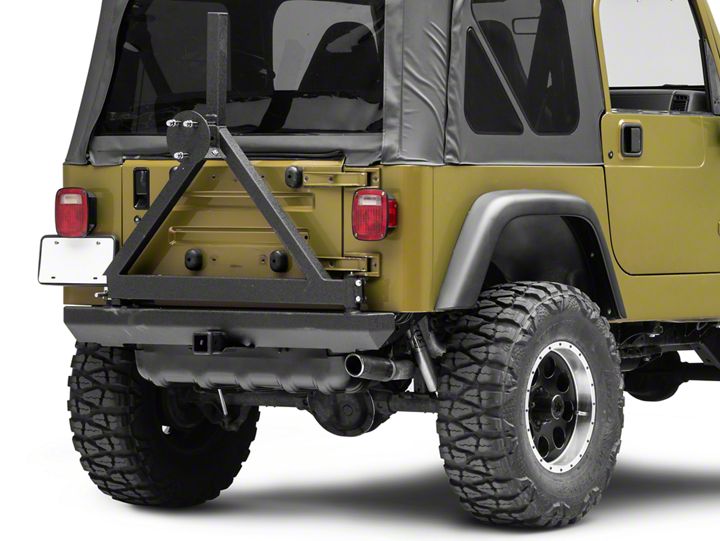

How to Install a Smittybilt Rock Crawler Classic Rear Bumper w/ Tire Carrier on your 87-06 Wrangler

Installation Time

1 days

View PDF Guide
Extreme Terrain
Shop Parts in this Guide

Step 1: Raise the frame drill template into place by locating it on the rear frame cross member OE bumper outer mounting holes. NOTE: The notch will be on the top and the drill template will be flipped for use on both the driver and passenger side.

Step 2: Using the supplied drill template, making sure its straight mark the needed holes with a scribe or marker then proceed to drill the (4) holes in the frame using a 7/16” drill bit.

CAUTION! Be VERY CAREFUL not to drill into the fuel tank. Use a drill stop on the drill bit to prevent the drill bit from over penetrating.
