2021-2024
Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Bronco Sales Tech
1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Find Winches Top Level for your Bronco

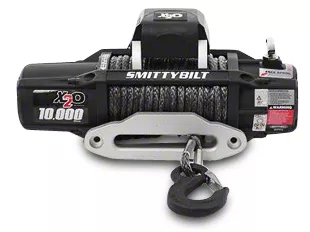

Smittybilt X2O Gen2 10K Waterproof 10,000 lb. Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle
Item FB6813
$0.00
217 Reviews
Our Price
$669.99 each
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Winch With Synthetic Rope
- 6.6 Horsepower Series Wound Electric Motor
- 3-Stage Planetary Gear with 218:1 Gear Ratio
- 98.5' 3/8" Synthetic Rope
- Integrated Wireless Remote Switch with 72" Lead
- 10,000 Pound Single Line Pull
- Textured Black Finish
- Overall Dimensions: 22.3" x 5.4" x 9.4"
- 10.0" x 4.5" Mounting Bolt Pattern
- Weight: 67 Lbs.
- Limited Warranty
- Fits 2021-2024 Bronco Models
| Brand | Smittybilt |
| Winch Capacity | 10000 lbs |
| Winch Rope Type | Synthetic Rope |
| Winch Remote Type | Wireless |
Description
Wireless Operation. A wireless remote control is included with the Smittybilt Gen2 X2O winch for both wired and wireless operation. The remote has a 12-foot lead and swaps seamlessly between both configurations allowing you to unplug and get a closer look to your pull target, from a safe distance of course. In addition to the added safety the wireless control provides you, this 6.6 horsepower winch has a 3-stage planetary gear train that delivers lightning speeds to pull your Bronco out of the mud or any predicament quickly.
Strong and Quick. With a single line pull of 10,000 lbs. and lightning-fast line speeds thanks to optimized gear ratios you’ll be pleased with the Smittybilt X2O winch's performance. The X20 winch features a 218:1 gear ratio matched with a sliding ring gear clutch and an automatic out-of-drum braking system. Smittybilt pairs your peace-of-mind with unparalleled performance in its X2O line of winches.
Additional Features. This Smittybilt X20 winch features a hawse fairlead that helps reduce wear-and-tear on the synthetic rope while keeping it from binding. It also has a cable that can pull up to 98.5' with a waterproof rating of IP58 for long-lasting usage.
Line Pull Speeds
Installation. The mounting bolt pattern is 10.0" x 4.5". The solenoid pack can be mounted in two different locations depending upon which works best for your application.
Lifetime Limited Warranty. Smittybilt is so confident in their product they cover it with the Smittybilt Lifetime Warranty.
Application. This Smittybilt Gen2 X2O 10,000 lb. Winch wth Synthetic Rope and Wireless Control fits 2021-2024 Bronco models.
Strong and Quick. With a single line pull of 10,000 lbs. and lightning-fast line speeds thanks to optimized gear ratios you’ll be pleased with the Smittybilt X2O winch's performance. The X20 winch features a 218:1 gear ratio matched with a sliding ring gear clutch and an automatic out-of-drum braking system. Smittybilt pairs your peace-of-mind with unparalleled performance in its X2O line of winches.
Additional Features. This Smittybilt X20 winch features a hawse fairlead that helps reduce wear-and-tear on the synthetic rope while keeping it from binding. It also has a cable that can pull up to 98.5' with a waterproof rating of IP58 for long-lasting usage.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
Installation. The mounting bolt pattern is 10.0" x 4.5". The solenoid pack can be mounted in two different locations depending upon which works best for your application.
Lifetime Limited Warranty. Smittybilt is so confident in their product they cover it with the Smittybilt Lifetime Warranty.
Application. This Smittybilt Gen2 X2O 10,000 lb. Winch wth Synthetic Rope and Wireless Control fits 2021-2024 Bronco models.
Smittybilt 98510
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- 9500 lb. Winch
- Synthetic Rope
- Hawse Fairlead
- Remote Control Lead
- Solenoid
- Wiring Harness
- Rope Hook
- Red Line Flag
- Hardware
