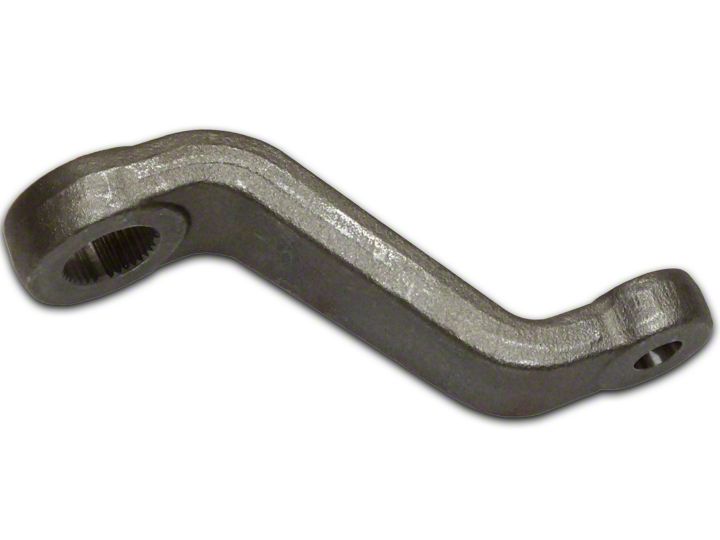

How to Install SkyJacker Drop Pitman Arm for 3.5-8 in. Lift (87-05 Wrangler YJ & TJ) on your Jeep Wrangler

Tools Required
  • Safety Glasses
  • Metric / Standard Wrenches & Sockets
  • Torque Wrench
View PDF Guide
Extreme Terrain
Shop Parts in this Guide

Installation:

1. Remove the OEM tie rod from the OEM pitman arm & lower the tie rod.

2. Remove the OEM nut & washer from the output shaft of the OEM steering gear box.

3. Using a pitman arm puller, remove the OEM pitman arm from the OEM steering gear box & install the new Skyjacker pitman arm using the OEM nut & washer.

4. Attach the OEM tie rod the new Skyjacker pitman arm using the OEM hardware. Note: If you changed styles of steering, reset the toe-in / toe-out & tighten all tie rod assembly hardware.

5. After the first 100 miles, check all hardware for the proper torque & periodically thereafter.
