How to Install Rugged Ridge Stinger Guard Accent for XHD Stingers on your 87-18 Jeep Wrangler YJ, TJ, JK & JL

Installation Time

1 hours

Tools Required
  • Drill
  • 9/64” Drill Bit
  • Center Punch
  • Phillips Head Screwdriver
View PDF Guide
Extreme Terrain
Shop Parts in this Guide

CONTENTS:

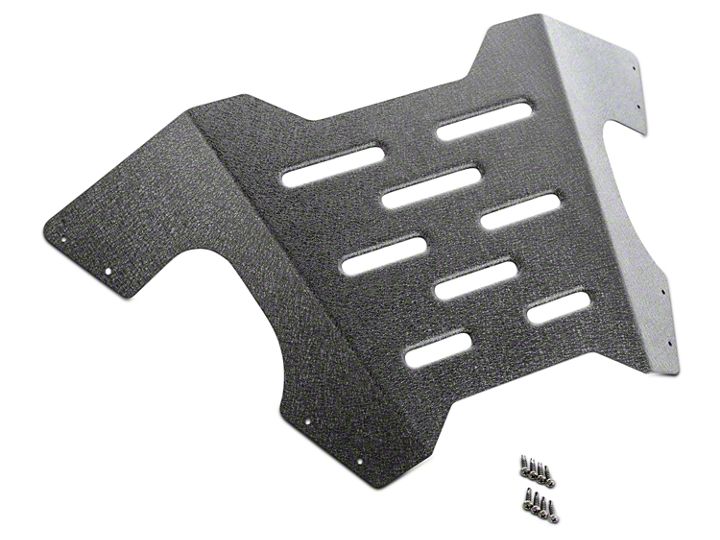

• XHD Stinger Guard

HARDWARE:
• Self-Tapping Screw


NOTICE: Careful attention is required to this instruction or operation, but does not generally relate to pesonal injury. Damage to your product or other property may result if you do not follow instructions.

1. With XHD Stinger installed, allign XHD Stinger Guard and mark hole locations.


2. Remove XHD Stinger Guard, re-mark hole locations with a Center Punch, and drill pilot holes with a 9/64” Drill Bit.

NOTICE: Use caution when drilling pilot holes to not drill through both sides of tube and to ensure best possible fit of product.


3. Place XHD Stinger Guard on XHD Stinger and attach with the supplied Self-Tapping Screws using a Phillips Head Screwdriver.
