How to Install Rugged Ridge Hood Lock, for pull forward hood latch on your 1997-2006 Wrangler

Step (1)
Open hood of vehicle and prop securely. Before proceeding, make sure the factory hood latch is adjusted and working properly.

Step (2)

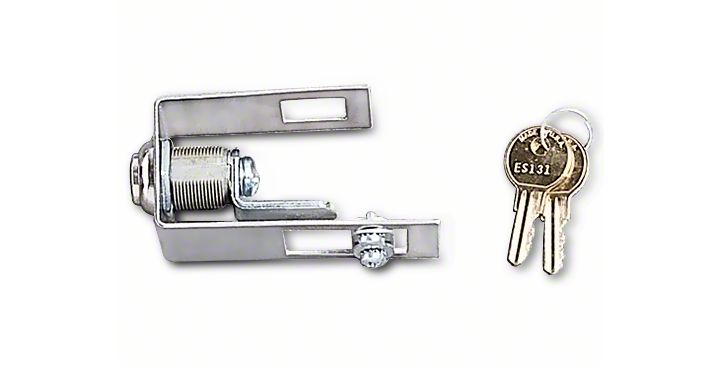

With key in the unlock position (turned horizontal) temporarily position the lock on the center latch as seen in (Fig.1).
Note: The shorter side of the lock assembly needs to be facing up towards the vehicles hood.
(Fig.1)

Step (3)
The lock should be preset from the manufacturer but due to the number of variations in models some adjustment may be needed. After installation turn the key top the vertical position (locked). If the key does not turn easily back to the locked position, or is very loose the striker bar, located on the lower long side of the lock, will need to be adjusted. Loosen the two screws on the striker bar and move to the proper position and tighten snuggly.

Step (4)
Final test: With the all the adjustments completed remove the lock and lower the hood. Working through the front of the grille, replace the lock and turn the key to the locked position making sure that the lock has caught the hood hook. To open your hood it now will be required to unlock and remove the lock assembly.

User Guide.
It may be easier to install the lock by holding the key as a handle with your right hand, while using your left to guide the lock into place. It might be required to squeeze the upper and lower parts of the lock when installing. This does not affect the security of the unit.

Warnings
NEVER drive your vehicle without properly securing all latches. This lock is not a replacement of any factory installed equipment and must be used in conjunction to avoid any damage to your persons or vehicle. NO lock has a 100% effective guarantee, use common sense when using and always park in well light areas.

Maintenance.
Frequent lubrication of the lock face and internal components are required. A small amount of bearing grease or Vaseline should be smeared over the face of the lock to help maintain proper function over time. Monthly checks need to be made to insure a long operating life.

LIMITED 90 DAY WARRANTY
Applies to Rugged Ridge by Omix-ada Inc. Products

Rugged Ridge Off Road (the Company) warrants to the original purchaser of this product that should the product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 DAYS from the date of original purchase, such defect(s) will be repaired or replaced or credited at the Company’s sole option.

To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. Dated bill of sale), specification of defect(s) to the place of purchase or, with prior approval from the Company (Return Authorization Number is required), freight pre-paid to the Company address listed below.

This warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident or by acts of nature. THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

This Warranty is in lieu of all express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERHCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN THE PERIOD OF 90 DAYS FROM DATE OF ORIGINAL PURCHASE.

IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some States do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage, so the above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.
