How to Install Rugged Ridge Elite Pivotal Headlight Euro Guards - Raw Aluminum (07-17 Wrangler JK) on your Jeep Wrangler
Shop Parts in this Guide
CONTENTS:
Pivitol Headlight Guard (2)
NOTICE: Careful attention is required to this instruction or operation, but does not genÂerally relate to pesonal injury. Damage to your product or other property may result if you do not follow instructions.
1. Disconnect factory turn signal from behind grille. Rotate bulb assembly down and towards center of vehicle. Pull bulb assembly out of turn signal housing.
2. Raise hood and remove (6) plastic pop rivets. First pull up on center pin to disengage rivets, then pull entire pop rivet up and out of grille.
3. Pull bottom of grille away from vehicle to disengage metal clips on bottom rear of grille.
NOTICE: Removal of winch or other bumper mounted accessories prior to removing grille may be necessary. Use caution to prevent damaging finish of grille.
4. Remove factory headlight retaining ring using T15 Torx Screwdriver. Do not discard factory screws.

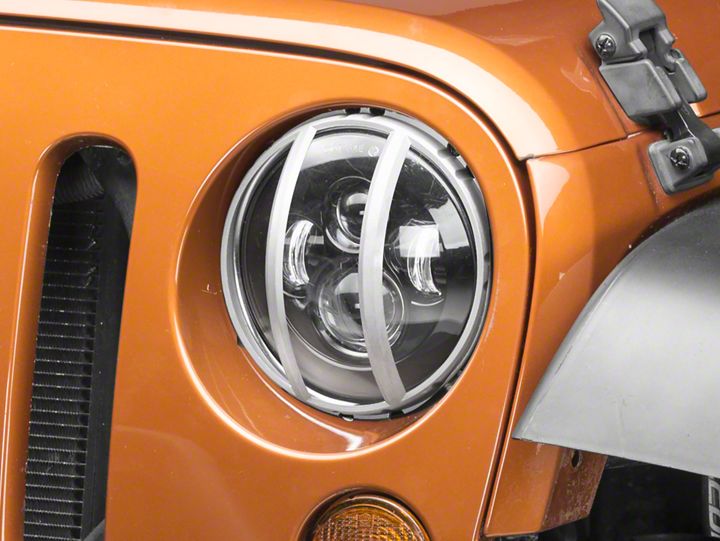

5. Install Pivitol Headlight Guard using factory screws in one of three configurations, vertical, horizontal, or diagonal. Each guard will work for both headlights.
Note: Image shown using left side headlight.
6. Reinstall grille and turn signal bulbs.
NOTICE: If removed, reinstall winch or other bumper mounted accessories.
