How to Install Rugged Ridge Elite Fire Extinguisher Holder (87-18 Jeep Wrangler YJ, TJ, JK & JL) on your Jeep Wrangler
Shop Parts in this Guide
1. Run one of the Velcro straps through the first steel loop of the extinguisher holder (Figure A).
Figure A
2. Run the Velcro strap through the second steel loop (Figure B).
Figure B
3. Repeat Steps 1 & 2 on the other side of the extinguisher holder (Figure C).
Figure C
4. Pull the top piece of the extinguisher holder up in the opposite of the arrowed direction until the bare steel dowel is cleared (Figure D).
Figure D
5. Pull up to detach from the base (Figure E).
Figure E
6. Place the base on the roll bar in the desired mounting position (Figure F).
Figure F
7. Place a Velcro strap over the bottom portion of the base (Figure G).
Figure G
8. Run the strap through the buckle and back around (Figure H).
Figure H
9. Tighten and attach the Velcro strap into place to secure the bottom portion of the base (Figure I).
Figure I
10. Repeat Steps 7-9 on the top portion of the base (Figure J).
Figure J
11. Slide the steel rod on the extinguisher mount into the opening of the base (Figure K).
Figure K
12. Press down and click into place (Figure L).
Figure L
Before

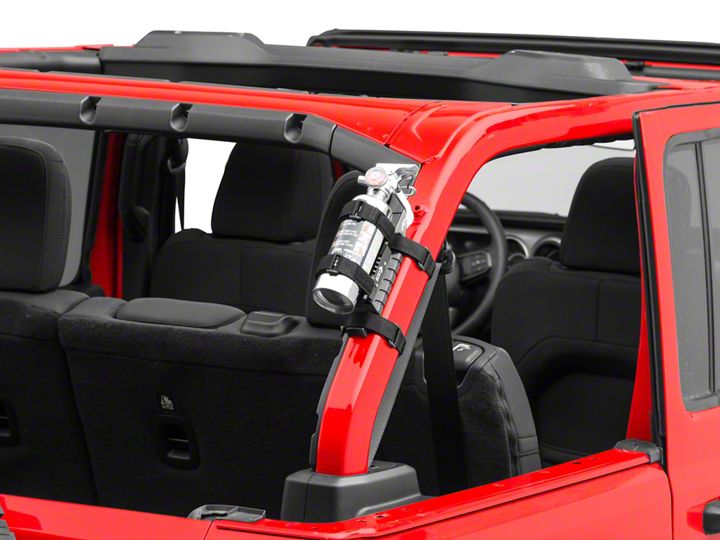

After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 10/04/2018
