How to Install Rugged Ridge Black Aluminum Oil Dipstick Handle on your Wrangler
Shop Parts in this Guide

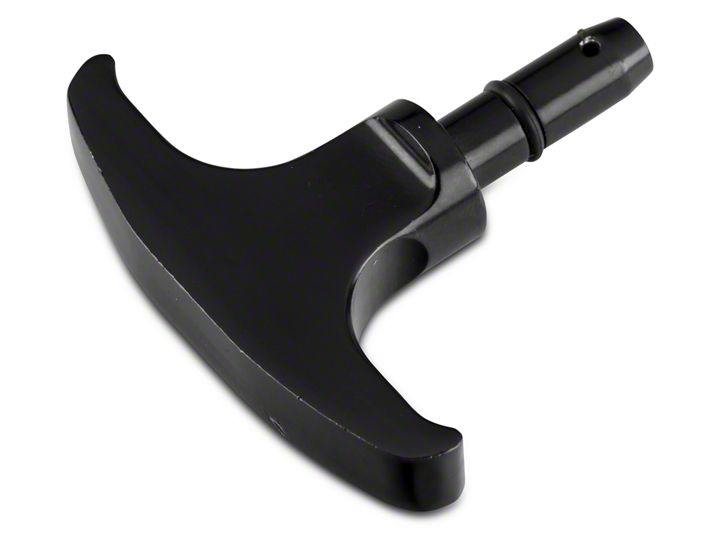

Contents: Oil Dipstick Handle (1)
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE YOU BEGIN.
Step 1
Using a small punch press the pin out that holds the dipstick in the factory handle. Do not discard the pin it will be reused. Carefully remove the O-ring from the factory handle and install in onto the new handle.
Step 2
Install the small sleeve over the end of the dipstick. Insert the dipstick and sleeve into the handle. Align the hole in the dipstick, sleeve and handle.
Step 3
Align the hole in the dipstick, sleeve and handle. Insert the pin removed from the factory handle using a small punch to set the pin.
Care and Maintenance:
Use soap and water to clean the aluminum surface. Regular cleaning with help maintain the appearance. Do not use harsh chemicals.
For Technical Assistance Contact:
OMIX-ADA Tech Support
Phone: 1-800-449-6649
Email: [email protected]
Web: www.Omix-Ada.com
Copyright Omix-Ada 2011
