How to Install Rugged Ridge Arm Rest w/ Full Hard Doors on your 1997-2006 Wrangler
Shop Parts in this Guide
INCLUDED COMPONENTS
2 – Arm Rest Padding
2 – Brackets (Left & Right)
4 – Rubber Plugs
4 – Sheet Metal Screws
4 – Phillips Machine Screws
INSTALLATION INSTRUCTIONS
1) Remove the factory door closure strap by unscrewing the two screws holding them in place (Figure 1).
2) After removing factory door strap from door panel, there will be two cavities on each door. Use Rubber Plugs to cover cavities (Figure 2).
3) Attach Bracket to door using the same holes that previously held the factory door closure strap. Use the included Sheet Metal Screws to attach Bracket to door (Figure 3)

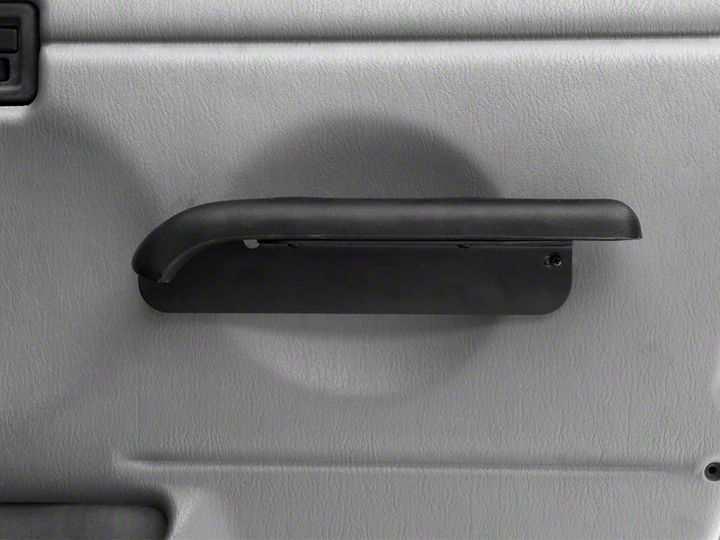

4) Mount Arm Rest Padding onto Bracket. Use the included Phillips Machine Screws to attach Padding onto Bracket (Figure 4).
5) Adjust Padding fore and aft to your position of maximum comfort.
