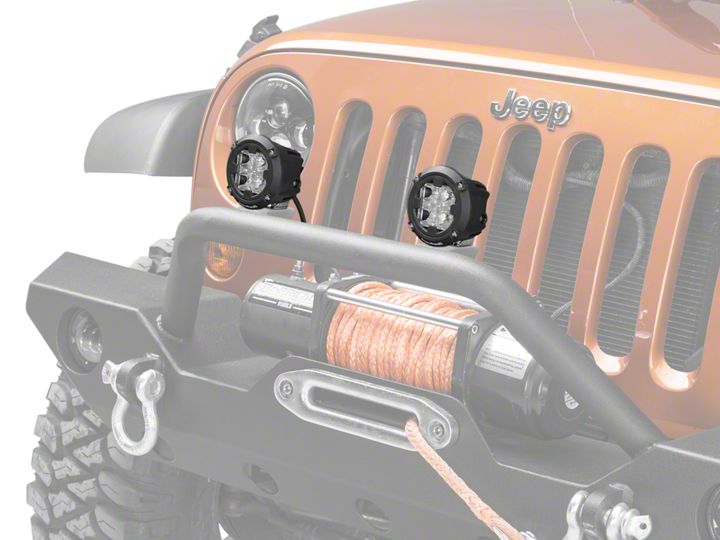

How to Install Rugged Ridge 3.5 in. Round LED Light - Combo High/Low Beam on your 87-18 Jeep Wrangler YJ, TJ, JK & JL

1. Wiring diagram for Dual Beam LED Light shown on right. Yellow wire powers amber running lamp. Red wire powers LED light. For detailed wiring diagram, see Step 3 if using a Rugged Ridge two position switch or Step 4 if using a Rugged Ridge three position switch.

2. Disconnect battery by removing negative terminal first, then positive.

WARNING: When removing battery cables do not touch positive and negative terminals together.

3. Using two 30A relays and two position switches, wire relays and switches as shown below.
- Connect yellow wire (-F12V IN) on Dual Beam LED Light to pin 87 ( 12V OUT - A) on first relay.
- Connect red wire ( 12V IN) on Dual Beam LED Light to pin 87 ( 12V OUT - B) on second relay.
- Connect 12V IN from two relays to a properly rated fuse before connecting to power source.
- Connect 12V IN from two switches to power source.
- Ground all GND connections to the chassis.
- Reconnect battery terminals.

4. Using two 30A relays and one three position switch, wire relays and switches as shown below.
- Connect yellow wire ( 12V IN) on Dual Beam LED Light to pin 87 ( 12V OUT - A) on first relay.
- Connect red wire ( 12V IN) on Dual Beam LED Light to pin 87 ( 12V OUT - B) on second relay.
- Connect 12V IN from two relays to a properly rated fuse before connecting to power source.
- Connect 12V IN from switch to power source. - Ground all GND connections to the chassis.
- Reconnect battery terminals.
