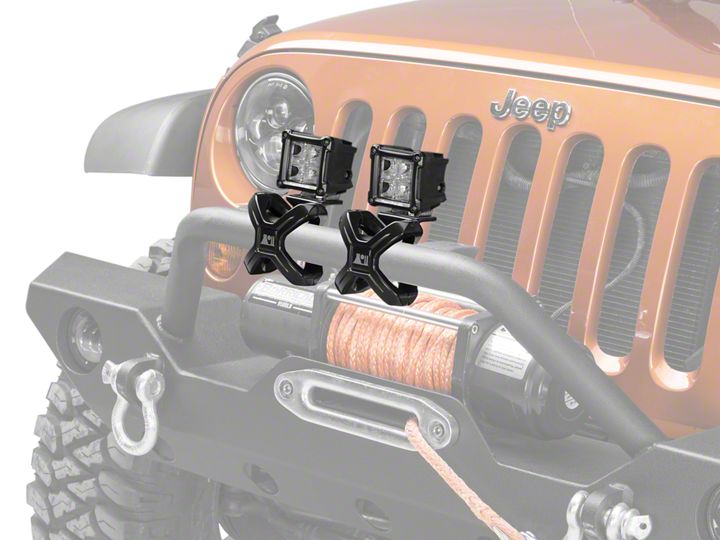

How to Install Rugged Ridge 3 in. Square LED Lights w/ X-Clamp - Dual Beam - Pair on your Jeep Wrangler

1. Carefully open the package using a box cutter or knife (Figure A) and ensure both LED Lights, X Clamps, and hardware are included and undamaged.

2. Place the exterior piece of the X Clamp on the tube to be mounted against (Figure B).

3. Using the four bolts (provided), connect the interior piece of the X Clamp to the exterior piece with the tube in between and tighten using the supplied Allen wrench (Figure C).

4. Using the smallest supplied bolt, connect the light tray to the X Clamp (Figure D).

5. Connect the LED light to the light tray using a crescent wrench to keep LED light in place (Figure H).

6. Connect the wiring harness (not supplied) positive (red) lead to the positive ( ) battery terminal and the negative (black) lead to the negative (-) battery terminal then run the harness to the mounting location of the lights.

Note: The harness connection point for these lights also comes with a yellow lead for tapping into the vehicle's high beams or fog lights, if desired.

7. Connect the light to the wiring harness (Figure I).

8. Follow Steps 2-10 for the second light, as well.

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 12/13/2017.
