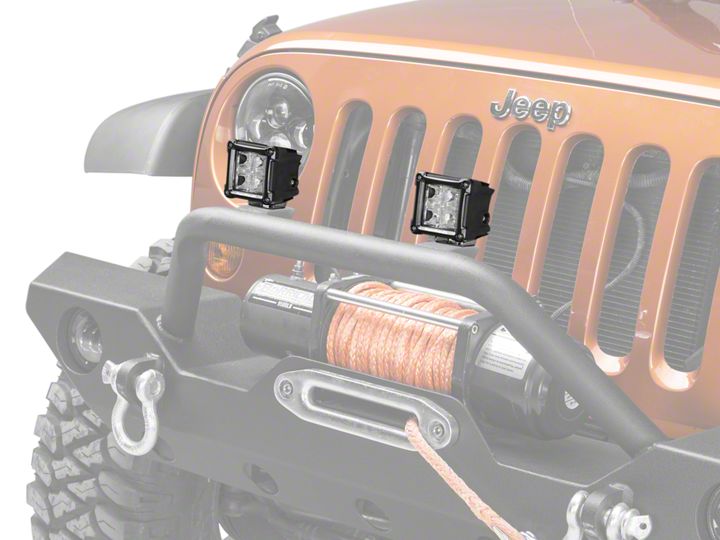

How to Install Rugged Ridge 3 in. Cube LED Light - Combo High/Low Beam on your 87-18 Jeep Wrangler YJ, TJ, JK & JL

Installation Time

3 hours

Extreme Terrain
Shop Parts in this Guide

1. Wiring diagram for Dual Beam LED Light shown on right. Yellow wire powers amber running lamp. Red wire powers LED light. For detailed wiring diagram, see Step 3 if using a Rugged Ridge two position switch or Step 4 if using a Rugged Ridge three position switch.


2. Disconnect battery by removing negative terminal first, then positive.

WARNING: When removing battery cables do not touch positive and negative terminals together.


3. Using two 30A relays and two position switches, wire relays and switches as shown below.
- Connect yellow wire ( 12V IN) on Dual Beam LED Light to pin 87 ( 12V OUT - A) on first relay.
- Connect red wire ( 12V IN) on Dual Beam LED Light to pin 87 ( 12V OUT - B) on second relay.
- Connect 12V IN from two relays to a properly rated fuse before connecting to power source.
- Connect 12V IN from two switches to power source.
- Ground all GND connections to the chassis.
- Reconnect battery terminals.


4. Using two 30A relays and one three position switch, wire relays and switches as shown below.
- Connect yellow wire ( 12V IN) on Dual Beam LED Light to pin 87 ( 12V OUT - A) on first relay.
- Connect red wire ( 12V IN) on Dual Beam LED Light to pin 87 ( 12V OUT - B) on second relay.
- Connect 12V IN from two relays to a properly rated fuse before connecting to power source.
- Connect 12V IN from switch to power source.
- Ground all GND connections to the chassis.
- Reconnect battery terminals.
