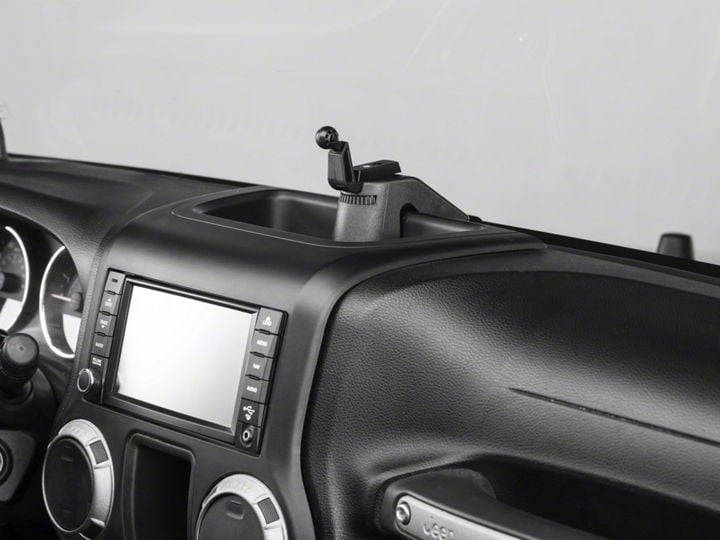

How to Install a Rugged Ridge Dash Multi-Mount Storage System in your 2011-2015 Jeep Wrangler JK

Installation Time

5 minutes

Tools Required
  • Socket Driver
  • 7 mm Socket
Extreme Terrain
Shop Parts in this Guide

Components:

1. Accessory Mount Base (1)
2. Rubber Tray (1)
3. Universal Ball Mount (1)
4. Cap Piece (1)


1. Remove factory rubber tray from dashboard stor­age area above center console.

2. Remove factory screw using a socket driver and a 7 mm socket. Do not discard factory screw, it will be reused in product installation.


3. Install Accessory Mount Base. Hooks on arms of Accessory Mount Base will snap into upper dash­board vents closest to windsheild.

4. Reinstall factory screw removed in Step 2.

5. Place custom Rubber Tray into dashboard stor­age area.



To remove Accessory Dash Mount Organizer:

1. Remove custom rubber tray from dashboard stor­age area.

2. Remove factory screw using a socket driver and 7 mm socket.

3. Rotate Mount Base towards the windshield until hooked arms release from dashboard vents.

4. Replace factory screw and factory rubber tray in dash storage area.



Four Configurations for Accessory Dash Mount Organizer:
