How to Install Rough Country Rear Bumper Brackets on your 07-18 Jeep Wrangler JK; 2018 Jeep Wrangler JL

Tools Required
  • 16mm Socket
View PDF Guide
Extreme Terrain
Shop Parts in this Guide

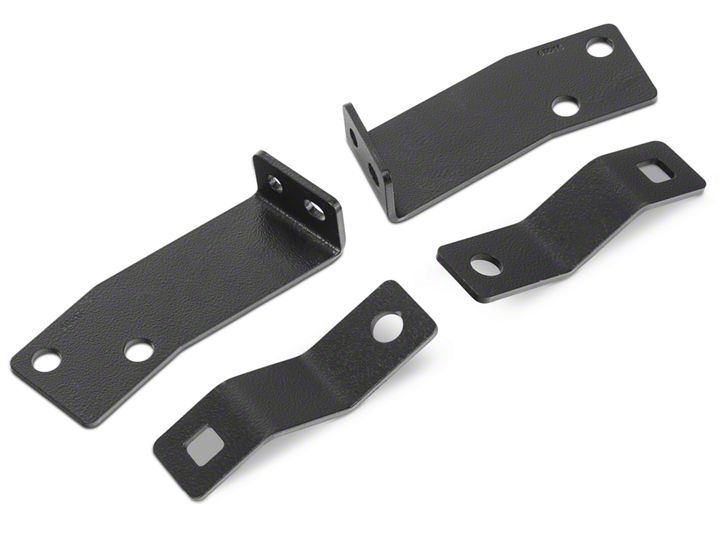

KIT CONTENTS:
2-Inner brackets
1-Driver side bracket
1-Pass side bracket


INSTALLATION INSTRUCTIONS

1. Remove the stock bumper brackets from the frame rail and the bumper as shown in Photo 1 & 2 using a 16mm socket.


2. Remove the inner brackets from the frame rail as shown in Photo 3 from the driver and passenger side. Retain the hardware for reuse.

3. Remove the stock bumper from the vehicle.

4. Install the inner bumper brackets on the bumper as shown in Photo 4 using stock hardware. Do not tighten at this time.


5. Install the bumper on the frame and install the outer bumper brackets with the stock hardware. Do not tighten at this time. See Photo 5.

6. Align the bumper and tighten all hardware with a 16mm socket. See Photo 6.


POST INSTALLATION
• All components must be retightened after 500 miles, and every three thousand miles after installation.
