RockJock Trac Bar Relocation and Ram Assist Mount Bracket; High Steer (18-24 Jeep Wrangler JL)Find parts that fit my vehicle

Description. The RockJock Trac Bar Relocation & Ram Assist Mount Axle Bracket Kit for all Jeep JL & JT models is designed specifically to be used in conjunction with our High Steer Knuckles.

Given the dramatic changes in geometry high steer knuckles impose, this bracket kit is a combination solution that incorporates trac bar geometry relocation to prevent you from incurring any bump steer, a higher relocated sway bar end link mounting point, a hydraulic assist steering ram mount, as well as a lower skid plate to protect your ram from rock bashing!

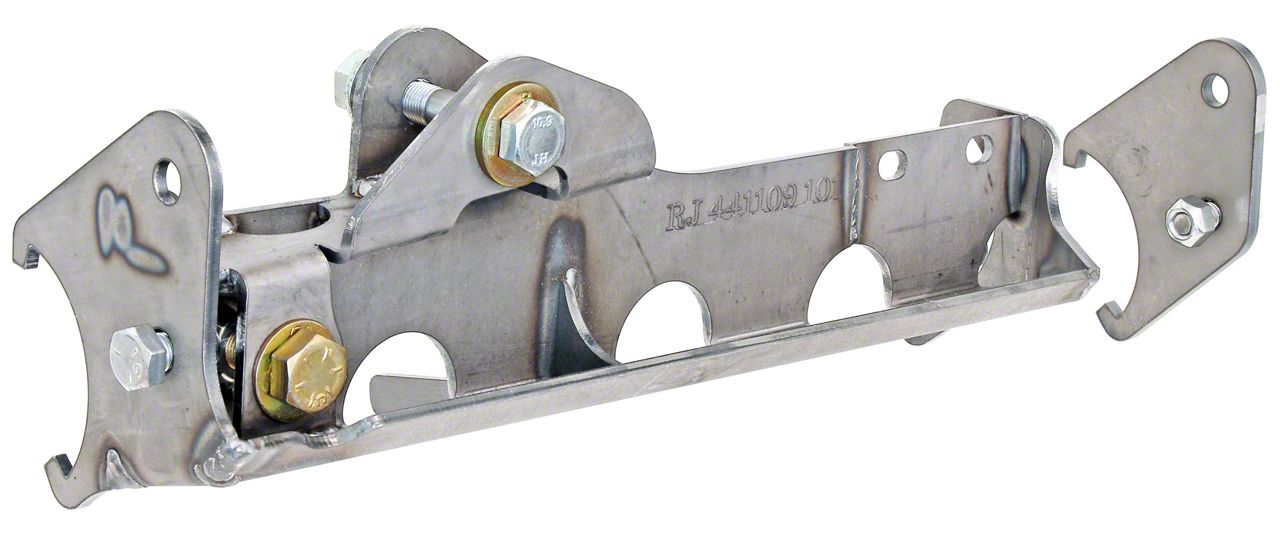

The large axle bracket, as well as the small bracket for use on the driver’s side of the axle to relocate the sway bar end link mounting point, easily install, but do require some minor welding. However, both brackets can be mounted solidly enough with the bolts to allow you to drive to a welder if need be.

We recommend buying this bracket in our complete RJ-440000-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. The use of our CE-9120FJL forged, “T-shaped in. front trac bar is also strongly encouraged, so that all components nest together for maximum up travel as we have intended.

Fitment:

• 2018 Jeep Wrangler
• 2019 Jeep Wrangler
• 2020 Jeep Wrangler
• 2021 Jeep Wrangler
• 2022 Jeep Wrangler
• 2023 Jeep Wrangler
• 2024 Jeep Wrangler
