![RockJock Johnny Joint Weld-On Narrow Tie Rod End; Frame Side (21-24 Bronco)](https://www.extremeterrain.com/image/rockjock-bronco-johnny-joint-weld-on-narrow-tie-rod-end-frame-side-rj-331001-101.FB25348.jpg?obj=car&wid=640&hei=480&sharpen=1)
FREE 1 to 3-Day Delivery on Orders $119+ Details
$62.00
Up to 10% off for Military & First Responders! See DetailsSaved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Description, Q&A

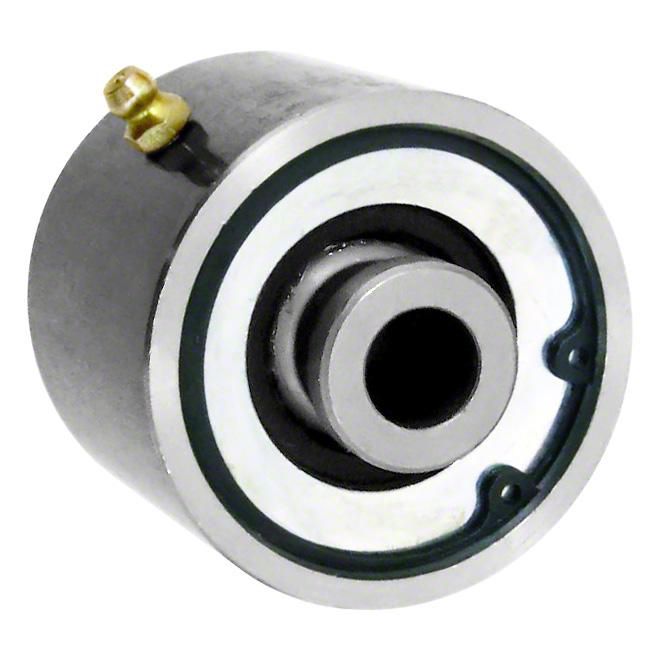

Description. RockJock's narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The narrow style outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing.This specific joint's 74mm mounting width ball with a 16mm thru bolt hole is designed to fit the frame side of the 2021 & up Bronco's rear control arms.
Fitment:
RockJock RJ-331001-101
