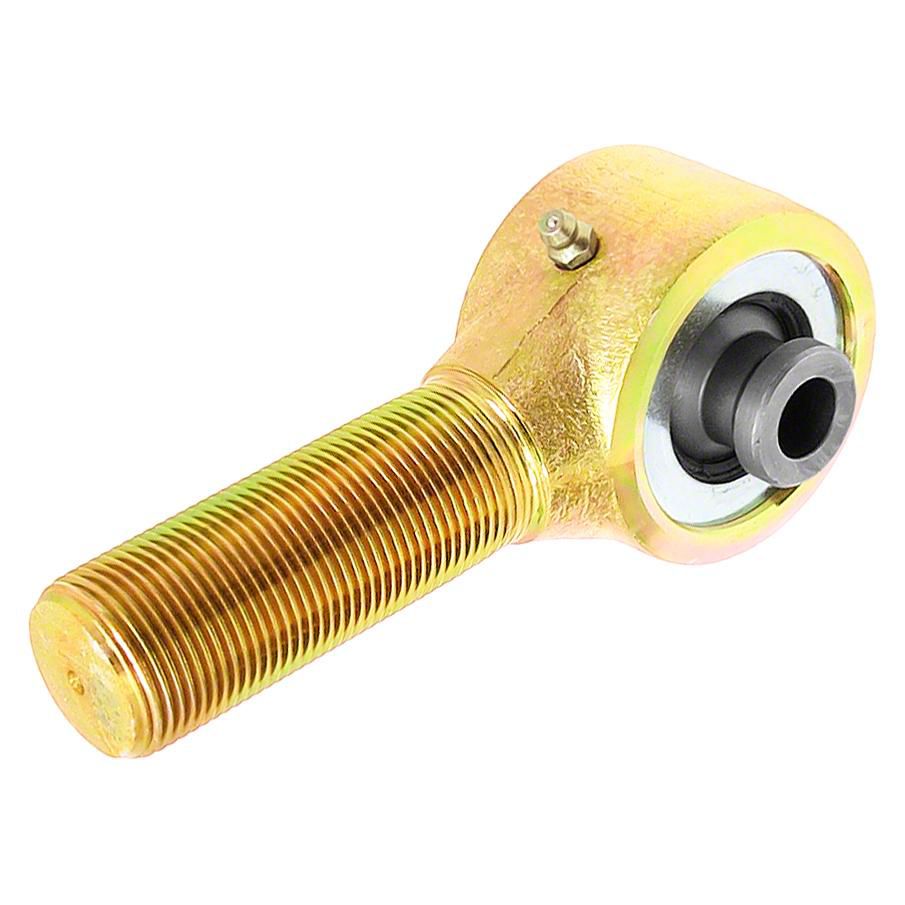

![RockJock Johnny Joint Forged Narrow Tie Rod End; 1-Inch 12 RH Thread; Axle Side (21-24 Bronco)](https://www.extremeterrain.com/image/rockjock-bronco-johnny-joint-forged-narrow-tie-rod-end-1-inch-12-rh-thread-axle-side-rj-331402-102.FB25336.jpg?obj=car&wid=640&hei=480&sharpen=1)
FREE 1 to 3-Day Delivery on Orders $119+ Details
-5% $62.70 Was $66.00
Up to 10% off for Military & First Responders! See DetailsSaved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Description, Q&A
Description. RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 30-plus degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the axle side of the 2021 & up Bronco's rear control arms and feature a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 70mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.
Fitment:
RockJock RJ-331402-102
