Rock Krawler 2.50-Inch Adventure Series Mid-Arm Suspension Lift System with Bilstein 5100 Shocks (20-23 3.0L EcoDiesel Jeep Wrangler JL)Find parts that fit my vehicle

The Rock Krawler Suspension JLU Wrangler 2.5 inch Adventure DIESEL Mid-Arm System is specifically designed for Sport and Sahara owners who want a complete system, bolt-in installation, and the best articulation of any MID-ARM kit on the market. Our system proves its durability and off-road performance every time you hits the streets or trail! The Term, "Adventure" comes from the inclusion of 2 non-adjustable control arms with our 100% Service Free Adventure Series joints installed at each end. Our industry leading, Adventure series mid-Arms feature 35 degrees of misalignment when paired with our Adventure series Joints at the frame connection and at the axle. The inherent bind in a factory JL control arm is greatly reduced. The arm is longer than the OEM control arm and allows you to correct the JL's caster up front. Driving you home with the most comfortable ride possible in a Wrangler, are our TRIPLE RATE coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM linear rate springs. The coil itself is built with the proper "Free-length" for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them! All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling.

When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, In tow, or down a Trail! Thank you for considering Rock Krawler Suspension

System Benefits:

Complete bolt in system
Excellent highway ride and handling
The best off-road ability of all Mid Arm Systems
Improved rear roll center
Tuned Triple Rate Coils
Spring Correction Seats
Vehicle lean correction
Upgradable to RK Longarm System
Best Technical support in the industry
Jeep remains level on all 4 corners
Lifetime Warranty Coverage

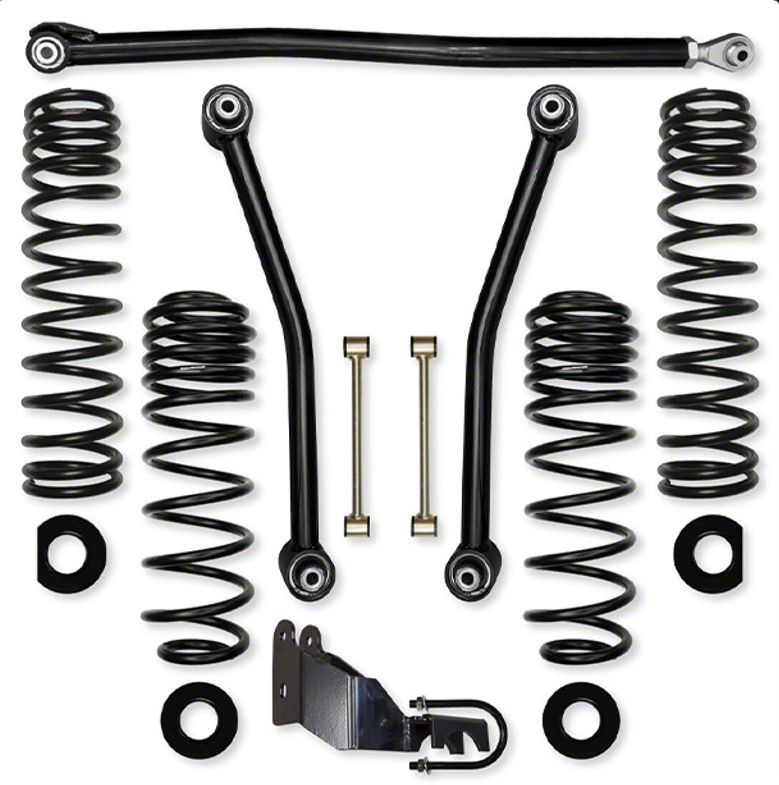

System Includes:

(4) Triple rate coil springs
(2) Front set-length lower control arms
(2) Front spring pads
(1) Adjustable front track bar
(2) Rear spring pads
(2) Set-length rear sway bar links
(1) Bolt-on rear track bar relocation bracket
(*DEPENDING ON SHOCK PACKAGE CHOSEN*)

Bumpstops are included with all shock options
IF YOU CHOOSE NO SHOCKS - BUMPSTOPS CAN BE PURCHASED SEPARATELY - RK07124
Twin Tube Shocks / 2.25"RRD shocks
Shock Information:

Generic Front Shock Length – 16.8” Collapsed/ 27.3” Maximum Extended
Generic Rear Shock Length – 17.8” Collapsed/ 29.31” Maximum Extended
Bilstein Shocks:

FRONT: RRD04047-B51
REAR: RRD04048-B51
requires 3" bump stops both front and rear
RRD Spec'd 2.25" Shocks: IN-HOUSE Designed and built - 2.25" Fluted aluminum construction, hard coat military grade black anodizing, 7/8" shaft, IFP (Internal floating piston), better bushings to achieve better misalignment, fully serviceable and rebuildable

RRD Spec Front Shock
Part Number RRD02283
RRD Spec Rear Shock
Part Number RRD02284
FULL PACKAGE = RRD02307
requires 3" bump stops both front and rear
Wheel Fitment:
Sport and Sahara Wheel Fitment Recommendations
35” Tall Tires - Recommend 4.5” of Back Spacing
37” Tall Tires - Recommend 3.5” of Back Spacing
Rubicon Fitment Recommendations
35" Tall Tires – Recommend 4.5" of Back Spacing
37” Tall Tires – Recommend 4.5” of Back Spacing
38"/40” Tall Tires – Recommend 3.5" of Back Spacing
Tire Fitment:

Sport and Sahara with Full OEM Fenders
35” Tall Tires (2” Bump Stop Height Recommended)
Sport and Sahara with Trimmed or High Lined OEM Fenders
37” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Full OEM Fenders
37” Tall Tires (2” Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders
38” Tall Tires (3” Bump Stop Height Recommended)
General Notes:
All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
XR Package does not require OUR raised rear track bar bracket, the factory axle has a raised rear trackbar bracket, and for OUR systems that do not have a rear trackbar one must be added.
If building with a spare delete we recommend dropping 1” in coil lift height for the rear.
If building an overland or heavily up-fitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
We recommend a new front driveshaft if you plan to off-road routinely.(Adam's Drivesahft,Tom Woods,J.E. Reel)

Fitment:

• 2020 Jeep Wrangler
• 2021 Jeep Wrangler
• 2022 Jeep Wrangler
• 2023 Jeep Wrangler
