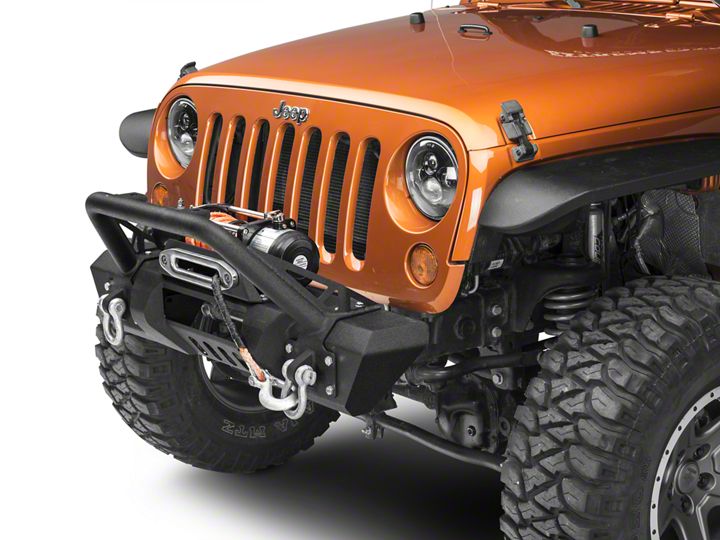

How to Install a RedRock 4x4 Stubby HD Front Bumper w/LED Light Bar Provision & Winch Mount on your 07-18 Jeep Wrangler JK; 2018 Jeep Wrangler JL
Shop Parts in this Guide
Description: BUMPER FOR JEEP WRANGLER JK 07-15
| No. | Description | Qty | Size |
| 1 | Bumper | 1 | |
| 2 | Top Tube Bar | 1 | |
| 3 | Fairlead mount | 1 | |
| 4 | Hex Bolt | 8 | M10x40 |
| 5 | Hex Bolt | 6 | M12x35 |
| 6 | Hex Nut | 8 | M10 |
| 7 | Hex Nut | 6 | M12 |
| 8 | Lock Washer | 8 | D10 |
| 9 | Lock Washer | 6 | D12 |
| 10 | Washer | 16 | D10 |
| 11 | Washer | 12 | D12 |
| 12 | Light Space Washer | 2 | Spare |
Installation Steps:
1. Reference parts lists and installation drawings, check the accessories are complete.
2. Remove the factory bumper & the frame bracket, to fix the bumper to the frame with the screws. (Fig. 1 & Fig. 2 & Fig. 3AB)
3. All bolts are screwed on and adjust the best position to slowly tighten all bolts.
4. Check for leakage on the bolts, make sure to tighten all the bolts.
5. You have to mount your square led light to the bumper before you install the bumper to your vehicle. (Light mounting need the space washer)
Installation Diagram:
Remove the plastic bumper & the frame bracket (Fig. 1 & Fig. 2 & Fig 3AB)
Place the bumper onto vehicle and install washers and locknuts. (Fig. 4-AB)
