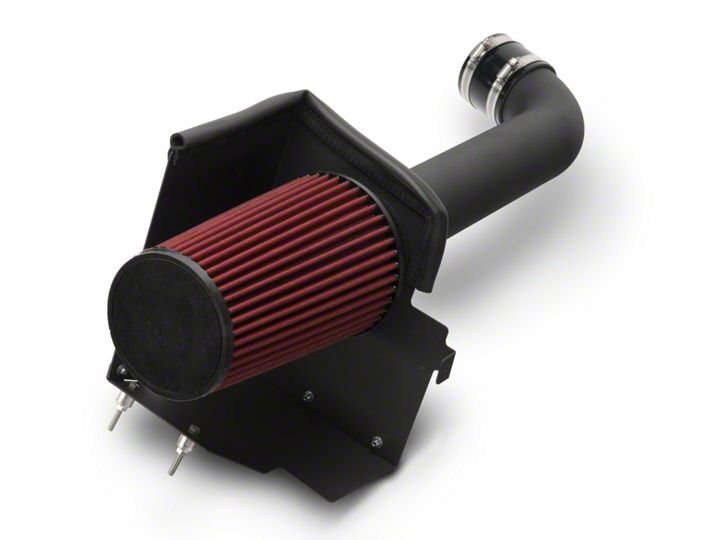

How to Install a RedRock 4x4 Cold Air Intake Kit on your 2012-2017 Jeep Wrangler JK
Installation Time
2 hours
Tools Required
- 10mm socket
- 8mm socket
- Flathead Screwdriver
- Allen Key Set
Shop Parts in this Guide
Step 1:
Unplug your factory IAT sensor located on the bottom of the intake tube.
Step 2:
Slide the PCV hose off of the factory air box.
Step 3:
Remove the (2) 10mm bolts holding the intake to the fan shroud.
Step 4:
Using a flathead screwdriver, remove the hose clamp holding the intake tube to the throttle body.
Step 5:
Pull the entire intake assembly up and away from the vehicle.
Step 6:
Using the (6) supplied nuts and screws, assemble the new hear shield as shown.
Step 7:
Add the supplied screws and spacers to the heat shield for mounting in the factory position.
Step 8:
Remove the 8mm screw holding the fan shroud to the radiator.
Step 9:
Install the heat shield using the factory mounting positions and secure with bolts.
Step 10:
Add the supplied rubber gaskets to the top of the heat shield and in hole for the intake.
Step 11:
Remove of OEM IAT sensor and transfer it over to the new intake tube noting position.
Step 12:
Install the supplied coupler to on the intake and the throttle body and secure it on the vehicle.
Step 13:
Reinstall the factory PCV hose onto the new intake tube and secure with new clamp.
Step 14:
Install the new filter and secure it into position using the supplied clamp
Step 15:
Using the supplied hose tie downs, re-secure the coolant overflow hose to the fan shroud.
