Redarc Encapsulated Protection Device

Item XJ2538
Product Image

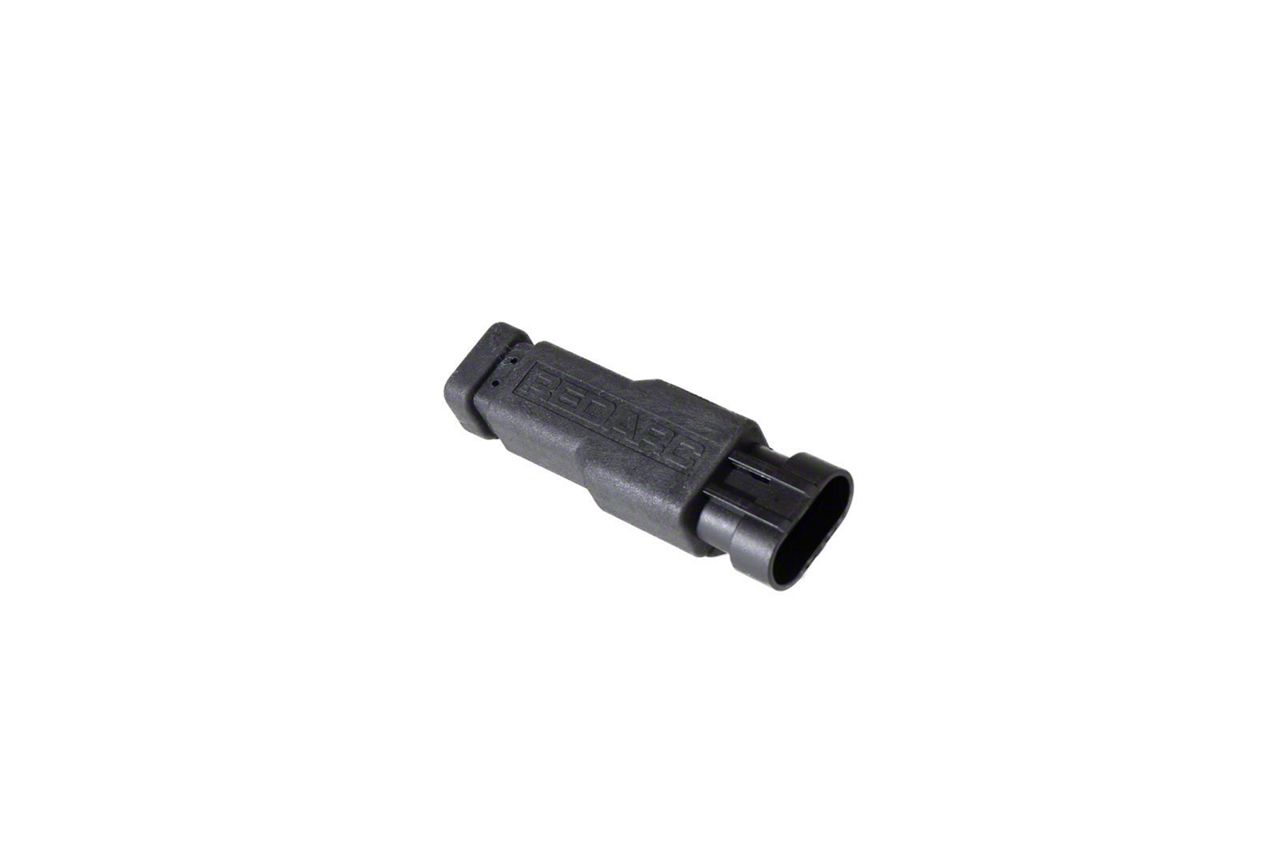

Redarc Encapsulated Protection Device
Verify parts fit and get product recommendations.
Cherokee Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-870-8556 Chat Now
$0.00
1 Reviews
Our Price

$42.50

In Stock

to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Description, Reviews, Q&A

      Features & Specs

      Description

      Description. REDARC has released an Encapsulated Protection Device (EPDK-001). It is rated at 7 Amps for both 12 and 24V applications. It is totally encapsulated with sealed connections for superior weather protection.

      The EPDK-001 has been designed and engineered to fit in the Trailer Stop Lamp feed to support the installation of Tow-Pro Electric Brake Controllers on vehicles where ‘back-feed’ of 12V (during Tow-Pro Manual Override) may interfere with the vehicle systems. When installed correctly, the EPDK-001 ensures correct Trailer braking and Stop Lamp operation when the vehicle brakes or the Tow-Pro Manual Override is used.

      It supports 12V and 24V applications capable of supporting a maximum continuous current of 7 Amps at a maximum ambient temperature of 850 C.

      To learn how to fit a Tow-Pro Elite with or without the EPDK view this handy tech tip or read about why you should choose the REDARC Encapsulated Protection Device over other standard diodes.

      Redarc EPDK-001
