How to Install Raxiom Rear Cargo Light (07-18 Jeep Wrangler JK) on your Jeep Wrangler
Shop Parts in this Guide
Installation Instructions:
1. Carefully open the package using a box cutter or knife (Figure A) and ensure the product is included and undamaged.
Figure A
2. Turn the Raxiom light over and locate the slot for the 9V battery (not included) (Figure B).
Figure B
3. Insert the 9V battery (Figure C).
Figure C
4. Remove the cover from the rear window by pulling down with pressure (the interior is held by metal clips which will release after an abrupt downward tug) (Figure D).
Figure D
5. Place the Raxiom light in place of the cover just removed, ensuring to align all three clips and press in firmly (Figure E).
Figure E
6. Ensure the light works properly by flipping the on/off switch on the side. The light should turn on immediately (Figure F).
Figure F
Before

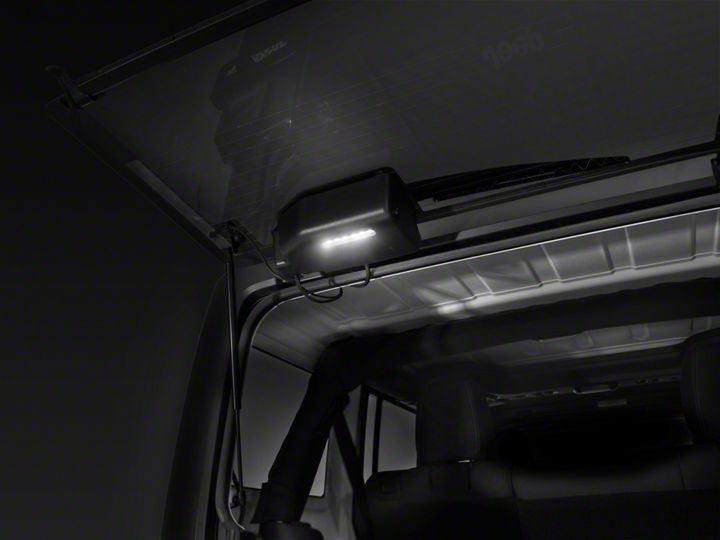

After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 12/20/2017
